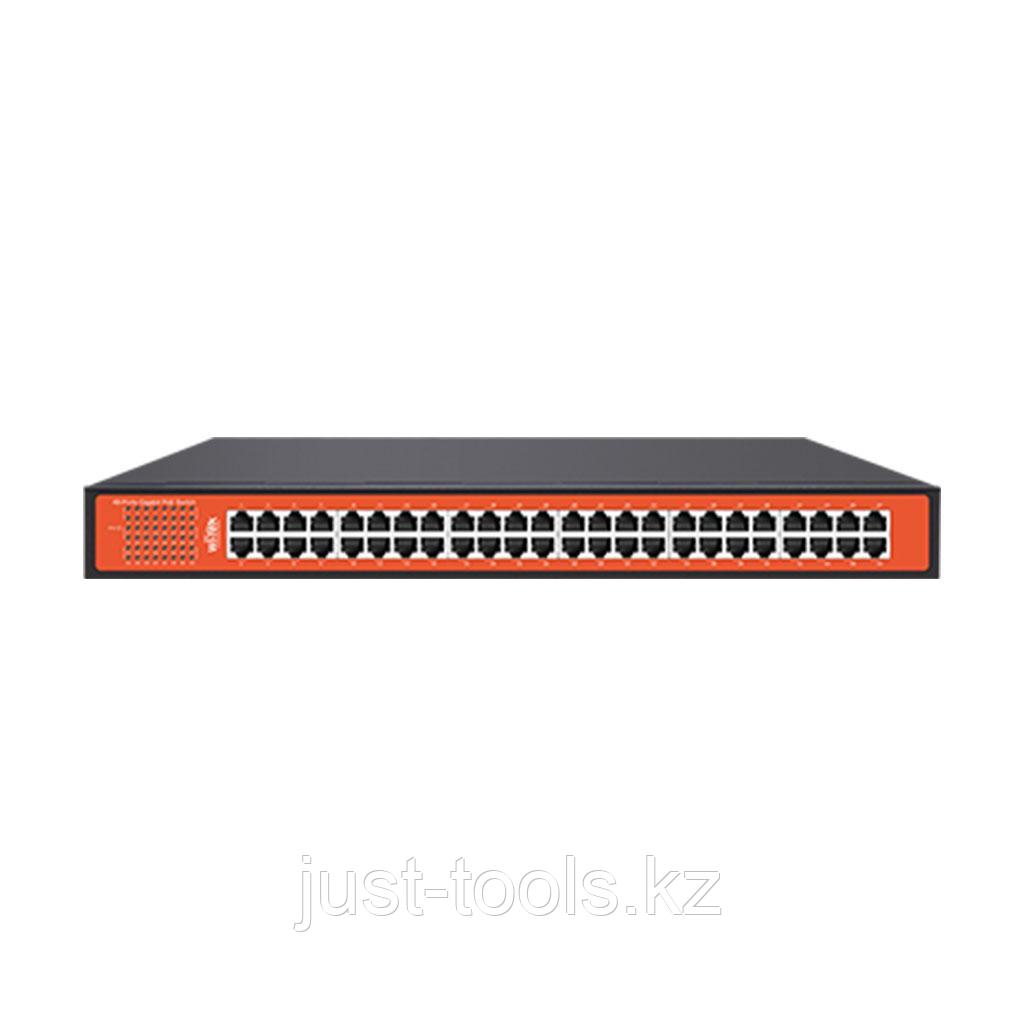

HARDWARE FEATURESWI-PS348GHardware VersionV1Interface48 1000Mbps RJ45 PoE PortsNetwork Media10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(≤100m) 100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(≤100m) 1000BASE-TX: 6 Category and above UTP(≤150m）Fan Quantity2 FansPower Budget600WInternal Power SupplyAC 110~240V 50/60HZStandard802.3 af/atPoE Ports (RJ45)Port 1-48Exchange Capacity128GMac Address Table8kPacket Forwarding Rate74.4MppsBuffer4.1MbJumbo Frame10240BytesProtection Level6kV Lightning protection 6kV ESD Contact dischargeSOFTWARE FEATURESTransmission MethodStore-And-ForwardAdvanced FunctionsMac Address Auto- Learning and Auto-Aging Store and forward IEEE 802.3x flow

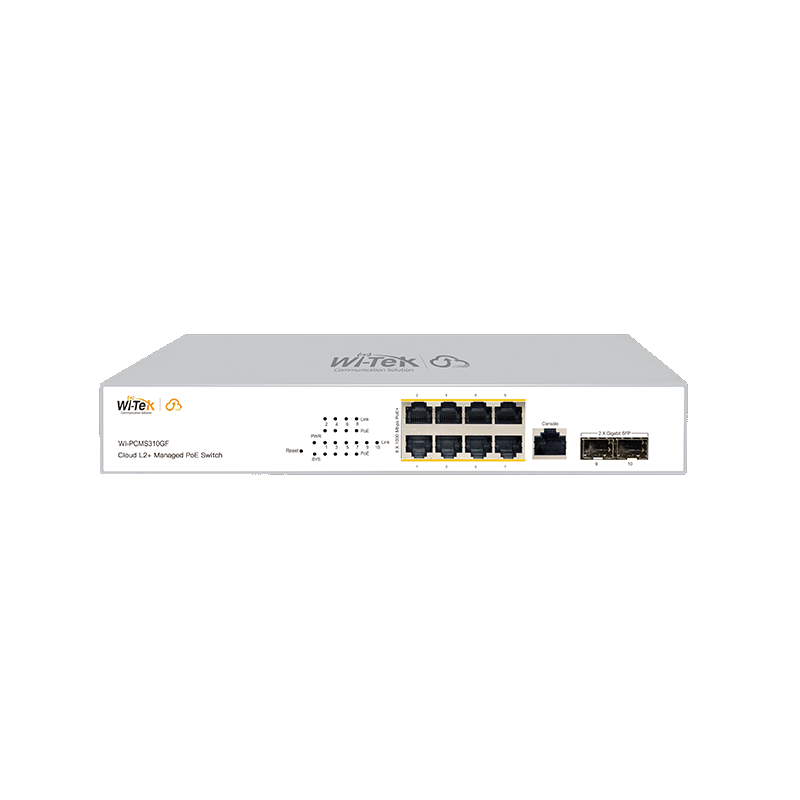

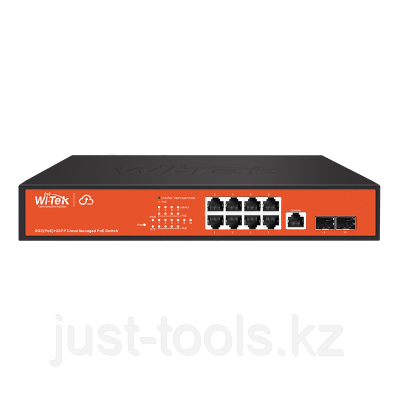

ModelWI-PCMS310GF-OHardware SpecificationsInterface8*10/100/1000Mbps RJ45 Ports and 2 Gigabit SFP SlotsInterface Port StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1x, IEEE 802.1q, IEEE 802.1p, IEEE 802.1d, IEEE 802.1w, IEEE 802.3ad, IEEE802.3af, IEEE802.3atPoE StandardPoE 802.3 af/atPoE Ports8, up to 30WPoE Power Budget110WPower SupplyAC 100-240V 120WStandby Power Consumption10WSwitching Capacity20GbpsPacket Forwarding Rate14.88MppsJumbo Frame10KBMAC Address Table8K, Auto-learning, Auto-agingFan QuantityFanlessRJ45 PoE Power SupplyMode A 1/2(+)3/6(-)Dimensions( W x D x H )300*220*30mmNet weight/gross weight (kg)0.97Kg/1.37KgReset ButtonPress and hold the

ProductsWI-PS205-OHardware FeaturesHardware Version V1Interface4 10/100Mbps RJ45 PoE Ports 1 10/100Mbps Uplink PortPoE PortsPort 1- 4: 802.3af/at (Working Mode: Default or CCTV) CCTV=VLAN+ExtendNetwork Media10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(≤100m) 100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(≤100m) 1000BASE-TX: 6 Category and above UTP(≤150m)Power SupplyAC 100-240V 50-60HzPower Budget60WExchange Capacity1GbpsPacket Forwarding Rate0.74MbpsMac Address Table4kProtection6kV PoE Surge Protection 10kV AC Surge ProtectionJumbo Frame10240BytesSOFTWARE FEATURESAdvanced FunctionsMac Address Auto-Learning And Auto-Aging Store and forward IEEE 802.3x flow control for

Интерфейс24 порта PoE RJ45 на 100 М 2 комбинированных 100/1000 Мбит/с.Сетевые носители10BASE-T: кабель UTP категории 3, 4, 5 (максимум 100 м) EIA/TIA-568 100Ω STP (максимум 100 м) 100BASE-TX: кабель UTP категории 5, 5e (максимум 100 м) EIA/TIA-568 100Ω STP (максимум 100 м)Количество вентиляторов2 вентилятораИсточник питанияПеременный ток 100 ~ 240 В 50/60 ГцСтандартPoE, совместимый с 802.3 af / at / btПорты PoEПорт 1-24Бюджет мощности PoE250 ВтHi-PoE 60 ВтПорт

ProductsWI-PS518GHARDWARE FEATURESInterface16 100M RJ45 PoE Ports 1 100/1000Mbps RJ45 Port 1 100/1000Mbps ComboNetwork Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)Fan Quantity2 FansPower SupplyAC 100~240V 50/60HZStandard802.3 af/at/bt compliant PoEPoE PortsPort 1-16PoE Power Budget200WHi-PoE 60WPort 1-2LED IndicatorPoE/Link/PowerDIP SwitchDefault/VLAN/Extend250mYesPort VLANYesPoE WatchdogYesMac Address Table8kPacket Forwarding Rate2.82MppsJumbo Frame10kBProtection LevelLightning protection 6kV 6kV ESD Contact dischargePackage Dimension405×275×95 mmSwitch

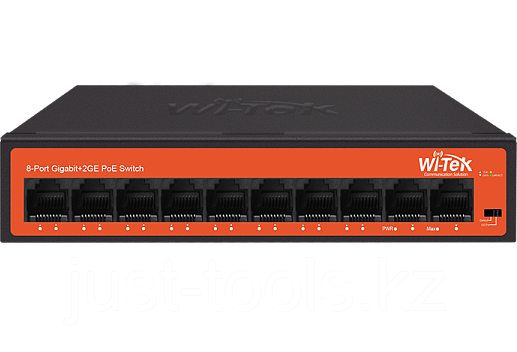

HARDWARE FEATURESWI - PS308GHHardware VersionV2Interface8 1000Mbps RJ45 PoE Ports 2 1000Mbps RJ45 PortsNetwork Media10Base-T: Pair 2 Category 3 (cat 3 ) and above UTP/ STP(≤100m) 100Base-TX: Pair 2 Category 5 (cat 5 ) and above UTP/ STP(≤100m) 1000BASE-TX: 6 Category and above UTP(≤150m)Fan QuantityFanlessPower SupplyAC 100~240V 50/60HZPoE Standard802.3 af/at compliant PoEPoE PortsPort 1-8PoE Power Budget65WMac Address Table4kPacket Forwarding Rate14.88Mppsumbo Frame10kBProtection Level6kV Lightning protection 6kV ESD Contact dischargeSOFTWARE FEATURESTransmission MethodStore-And-ForwardLED IndicatorPoE/Link/PowerDIP SwitchDefault/VLAN/CCTV250mYesPort VLANYesPoE WatchdogYesAdvanced

ModelWI-PS212GF-IHardware VersionV2InterfacesDownlink Ports8*10/100 Base-TX PoE RJ-45 (Auto-MDI/MDI-X)Uplink Ports1*1000 Base-T RJ451*1000 Base-X SFP SlotPoEPoE StandardPort 1-2: IEEE 802.3af/at/bt 90W PoE Port 3-8: IEEE 802.3af/at 30W PoEPoE Power Supply TypeEnd-span and Mid-spanPoE Pin Assignment802.3af/at: 1,2 (+), 3,6 (-)802.3af/at/bt: 3, 6, 4, 5 (+), 1, 2, 7, 8 (-)Switch PropertyStandardsIEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit EthernetIEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.3af Power-Over-Ethernet IEEE 802.3at Power Over Ethernet PlusIEEE 802.3bt Power Over Ethernet Plus PlusForwarding ModesStore and ForwardPacket Buffer1MbitMAC

Model WI-PS206S WI-PS210S WI-PS210GS Downlink Ports 4 * 100Mbps RJ45 PoE Ports 8 * 100Mbps RJ45 PoE Ports 8 * 100Mbps RJ45 PoE Ports Uplink Ports 2 * 100Mbps RJ45 Ports 2 * 100Mbps RJ45 Ports 2 * 1000Mbps RJ45 Ports PoE Power Budget 60W 95W 95W Switching Capacity 1.2 Gbps 2 Gbps 5.6 Gbps Packet Forwarding Rate 0.89 Mpps 1.49 Mpps 4.17 Mpps MAC Address Table 2k 2k 2k Packet Buffer Memory 768 Kbit 768 Kbit 1 Mbit Power Consumption (Idle) 5 W 5 W 5 W Power Consumption (100% Traffic with PoE) 65 W 100 W 100 W Dimensions (W*D*H)

ModelWI-PS206GF-IHardware VersionV2InterfacesDownlink Ports4*10/100 Base-TX PoE RJ-45 (Auto-MDI/MDI-X)Uplink Ports1*1000 Base-T RJ451*1000 Base-X SFP SlotPoEPoE StandardPort 1: IEEE 802.3af/at/bt 90W PoE Port 2-4: IEEE 802.3af/at 30W PoEPoE Power Supply TypeEnd-span and Mid-spanPoE Pin Assignment802.3af/at: 1,2 (+), 3,6 (-)802.3af/at/bt: 3, 6, 4, 5 (+), 1, 2, 7, 8 (-)PoE Power Output46~56V DCPoE Ports4Switch PropertyStandardsIEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit EthernetIEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.3af Power-Over-Ethernet IEEE 802.3at Power Over Ethernet PlusIEEE 802.3bt Power Over Ethernet Plus PlusForwarding ModesStore and

Hardware Specifications Hardware Version V1 Interface 24x10/100/1000Mbps RJ45 Ports 2xGigabit Combo ports 2xGigabit SFP Slots 1xConsole Port Port Standard IEEE 802.3 i:10BASE-T Ethernet; IEEE 802.3 u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet; IEEE 802.3z:1000BASE-X Gigabit Ethernet(Optical fiber) PoE PoE Standard 802.3af/at PoE Ports 24 up to 32W PoE Power Budget 370W Power Supply 100-240 V AC~50/60 Hz Switching Capacity 56Gbps Packet Forwarding Rate 41.66Mpps Jumbo Frame 9KB MAC Address Table 8K Dimensions ( W x D x H ) 440*207*44mm Fan Quantity 2 Fan Protection Level Common Mode ± 6KV, Differential Mode ± 4KV

HARDWARE FEATURESWI-PE41E-OInterfacePoE in port： 1 x 100Mbps PoE port with 802.3bt 60W PoE out port: 3 x 100Mbps PoE port with 802.3at/at 30WNetwork Media10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m)EIA/TIA-568 100Ω STP (Max 100m)Fan QuantityFanlessPoE PINPoE IN: 4/5(+) 7/8(-)or 1/2(+) 3/6(-) PoE OUT: 4/5(+) 7/8(-)or 1/2(+)3/6(-)LED IndicatorPWR, LinkDIP SwitchN/A250m Long DistanceNoTransmission MethodStore-And-ForwardAdvanced FunctionsMac Address Auto-Learning And Auto-Aging Store and forward IEEE 802.3x flow control for Full-duplex Mode Backpressure for Half-duplex ModeOTHERSCertificationCE, FCC,

HARDWARE FEATURESWI-POE55-48V-60WInterface1 10/1000Mbps PoE RJ45 Port 1 10/1000Mbps Ethernet PortNetwork Media10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m)Power SupplyAC IN 100-240VData In/Out1 10/1000Mbps Data InPower In/Out Port1 x 802.3 af/at/bt 60W PoE OutPoE PIN1/2/4/5(+) 3/6/7/8(-)PoE Consumption52V 60WLED IndicatorPWR-PowerDIP SwitchN/AFan QuantityFanlessBackground Bandwidth2GbpsTransmission MethodStore-And-ForwardProtection Level6kV Lightning protection 6kV ESD Contact dischargeAdvanced FunctionsMac Address Auto-Learning And Auto-Aging Store and forward IEEE 802.3x flow

Hardware VersionV1Interface8 1000Mbps RJ45 PoE Ports 1 1000Mbps RJ45 Ports 1 1000Mbps SFP PortNetwork Media10Base-T: Pair 2 Category 3 (cat 3 ) and above UTP/ STP(≤100m) 100Base-TX: Pair 2 Category 5 (cat 5 ) and above UTP/ STP(≤100m) 1000BASE-TX: 6 Category and above UTP(≤150m)Fan QuantityFanlessPower SupplyAC 100~240V 50/60HZPoE Standard802.3 af/at compliant PoEPoE PortsPort 1-8PoE Power Budget65WMac Address Table4kPacket Forwarding Rate14.88MppsJumbo Frame10kBProtection LevelLightning protection 6KV 6KV ESD Contact dischargePackage Dimension195×165×60 mmSwitch Dimension170×95×33 mmGross Weight0.8kgNet Weight0.5kgPackage Content1 × Power cord 1 × Quick Installation Guide 1 ×

Технические характеристикиИнтерфейсы8 портов 10/100/1000Mbps RJ45 (Auto Negotiation/Auto MDI/MDIX) 2 SFP-слота 1000Mbps 1 консольный порт Физические среды10BASE-T: UTP кабель категорий 3, 4, 5 (макс. 100м) 100BASE-TX/1000Base-T: UTP кабель категорий 5, 5e, 6 или выше (макс. 100м) 1000BASE-XОхлаждениеАктивноеПотребляемая мощность150Вт макс. (с подключенными POE-устройствами)Блок питанияВходное напряжение AC 100~240В 50/60HZPoE порты (RJ45)Стандарты 802.3af/at

HARDWARE FEATURESWI-PS326GFHHardware VersionV1Interface24 1000Mbps RJ45 PoE Ports 2 1000Mbps SFP SlotsNetwork Media10Base-T: Pair 2 Category 3 (cat 3 ) and above UTP/ STP(≤100m) 100Base-TX: Pair 2 Category 5 (cat 5 ) and above UTP/ STP(≤100m) 1000BASE-TX: 6 Category and above UTP(≤150m)Fan Quantity2 x FansPower SupplyAC 100~240V 50/60HZPoE Standard802.3 af/at compliant PoEPoE PortsPort 1- 24PoE Power Budget200WMac Address Table8kPacket Forwarding Rate38.69MppsJumbo Frame10kBProtection Level6kV Lightning protection 6kV ESD Contact dischargeSOFTWARE FEATURESTransmission MethodStore - And - ForwardLED IndicatorPoE/Link/PowerDIP SwitchDefault/VLAN/CCTV250mYesPort VLANYesPoE

Коммутатор WI-TEK WI-PS311G-24V - 8GE+3GE порта PoE 24V с 8-портовым PoE обеспечивает бесшовное сетевое соединение. Он объединяет в себе 1000 Мбит/с Gigabit Ethernet и 10/100 Мбит / с Fast Ethernet. Особенности коммутатора WI-TEK WI-PS311G-24V 8GE+3GE порта PoE 24V с 8-портовым PoE Поддержка питания PoE до 24 Вт для каждого порта Поддерживает 24V пассивных PDE-совместимых PD Внутренний адаптер питания 120 Вт Что делает этот продукт

Интерфейсы16 портов 10/100M PoE 1 порт 1000M1 комбо порт 1000M/SFP Физические среды10BASE-T: UTP кабель категорий 3, 4, 5 (макс. 100м)100BASE-TX/1000Base-T: UTP кабель категорий 5, 5e, 6 или выше (макс. 100м)1000Base-XОхлаждениеАктивное Потребляемая мощность 150Вт макс. (с подключенными POE-устройствами) Внутренний блок питания AC110-240В 50/60Гц PoE порты (RJ45)PoE порты с 1 по 16 (стандарт 802.3 af/at) до 30Вт на портПоддержка передачи PoE до

HARDWARE FEATURESWI-PS526GHHardware VersionV1Interface24 100Mbps RJ45 PoE Ports 1 1000Mbps RJ45 Port 1 1000Mbps ComboNetwork Media10Base-T: Pair 2 Category 3 (cat 3 ) and above UTP/ STP(≤100m) 100Base-TX: Pair 2 Category 5 (cat 5 ) and above UTP/ STP(≤100m) 1000BASE-TX: 6 Category and above UTP(≤150m)Fan Quantity1 ×FanPower SupplyAC 100~240V 50/60HZPoE Standard802.3 af/at compliant PoEPoE PortsPort 1-24PoE Power Budget200WMac Address Table8kPacket Forwarding Rate38.69Mppsumbo Frame10kBProtection Level6kV Lightning protection 6kV ESD Contact dischargeSOFTWARE FEATURESTransmission MethodStore-And-ForwardLED IndicatorPoE/Link/PowerDIP SwitchDefault/VLAN/Extend250mYesPort VLANYesPoE
