Комплекты видеонаблюдения Uniview

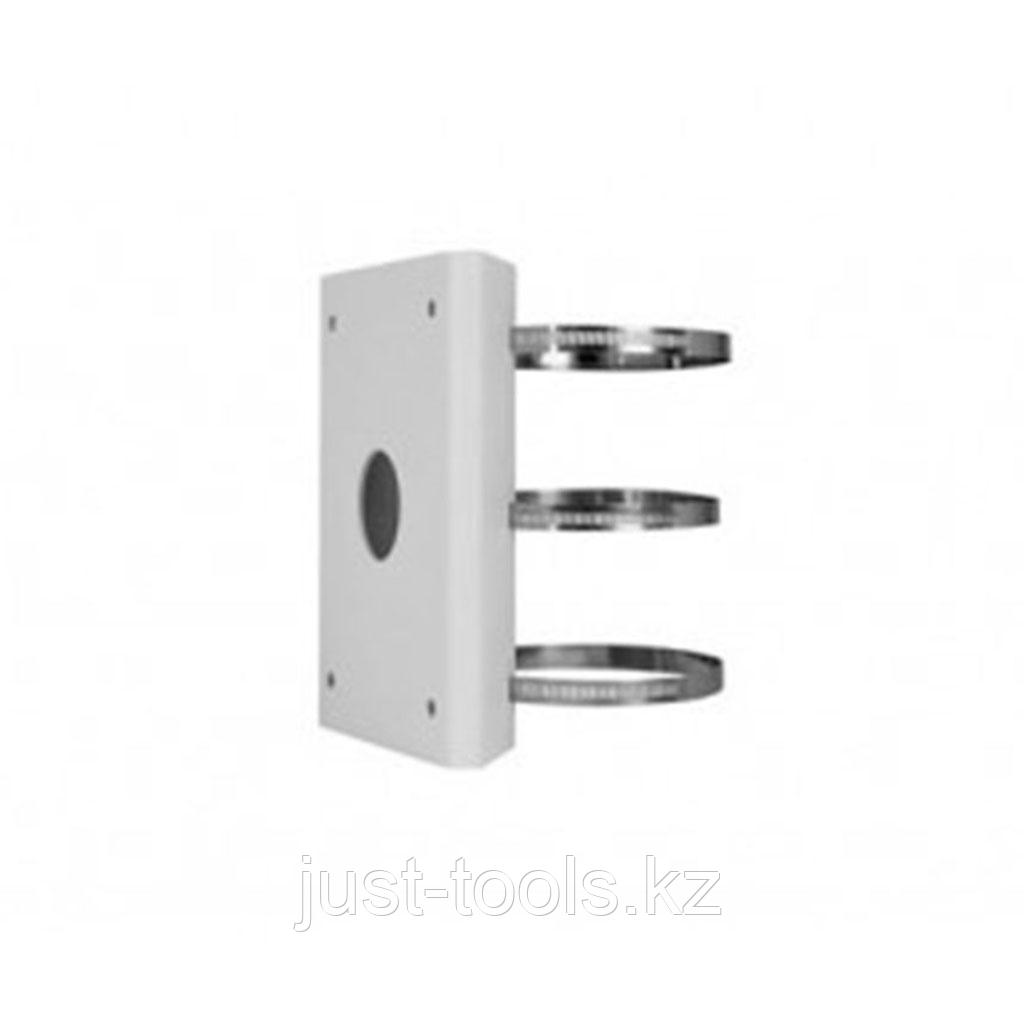

Bracket TR-UP08-A-IN Application Indoor or outdoor, pole installation for PTZ dome camera Dimensions(L × W × H) 215mmx175mmx60.0mm(8.5” x 6.9”x 2.4”) Embrace hoop diameter 67mm~127mm(2.6”~5”) Weight 1.47kg(3.2lb) Material Steel

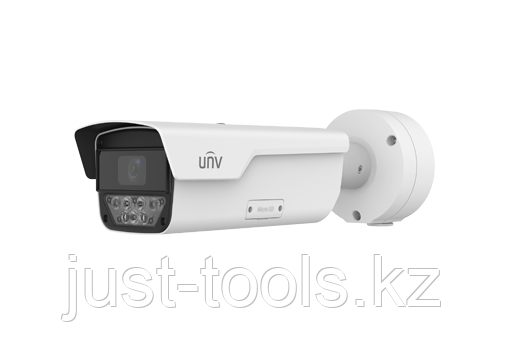

Camera Description Sensor 1/1.8‑inch 4MP CMOS Focal length PKC2640@Z80‑P:8 to 32mm PKC2640@Z80‑IR‑P/PKC2640@Z80‑P/PKC2640@Z80‑IR‑P:8 to 32mm, motorized zoom Shutter Auto/Manual, range: 1/30 to 1/100000s Minimum illumination 0.002lux (F1.7) Image Description Image collection format 2688*1520@30 (default), 2688*1520@25 Resolution Main stream: 2688*1520, 1080P (default), 720P, D1; Sub stream: 720P (default), D1, 2CIF, CIF; Third stream: D1 (default), 2CIF, CIF Frame rate 30 (default), 25, 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1 Video compression H.264 (default), H.265 ROI Supports up to 8

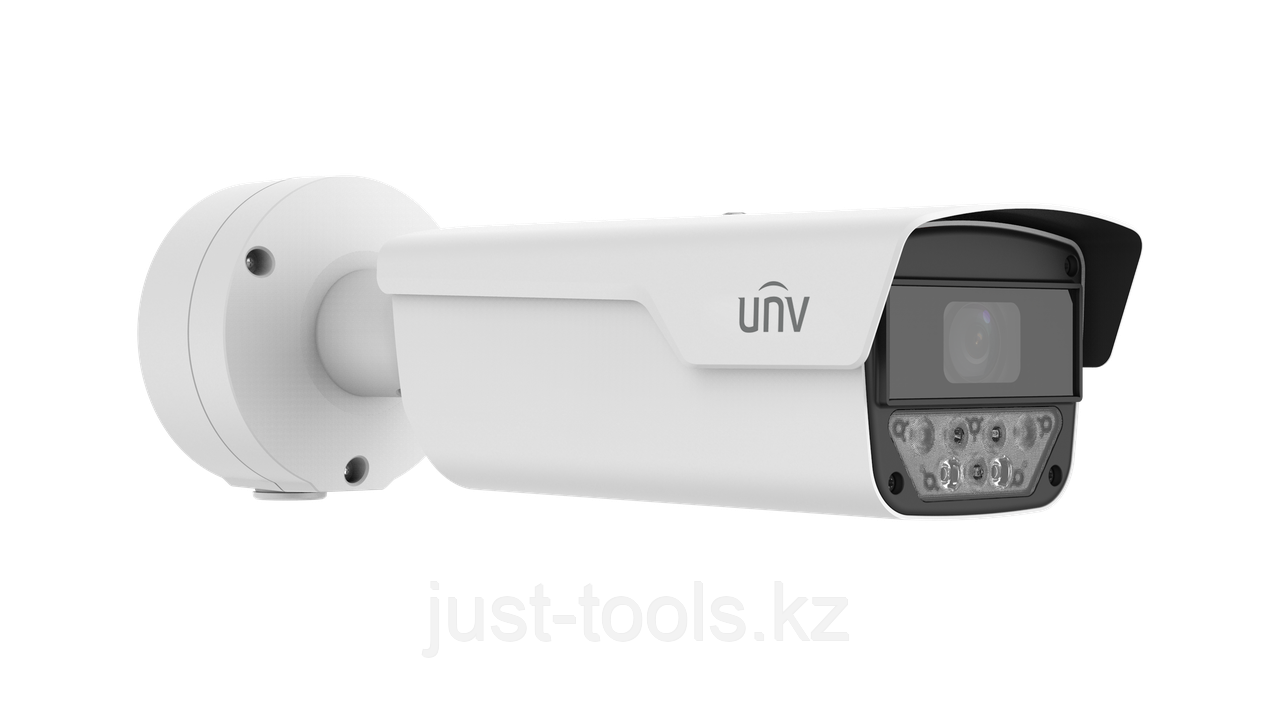

Camera Description Sensor 1/2.8‑inch 3MP CMOS Focal length 2.8 to 12mm Shutter Auto/Manual, range: 1/30 to 1/100000s Minimum illumination PKC2630@Z28‑P/PKC2630@Z28‑P:0.003lux (F1.4) PKC2630@Z28‑IR‑P/PKC2630@Z28‑IR‑P:0.005lux (F1.6) Image Description Image collection format 2304*1296@30 (default), 2304*1296@25 Resolution Main stream: 2304*1296,1080P (default), 720P, D1; Sub stream: 720P (default), D1, 2CIF, CIF; Third stream: D1 (default), 2CIF, CIF Frame rate 30 (default), 25, 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1 Video compression H.264 (default), H.265 ROI Supports up to 8 regions

DecodingDescriptionDecoding FormatUltra 265,H.265,H.264Decoding CapabilityNVR508‑32E‑IQ:Smart Off：2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30Smart On：1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 24 x 1080P@30, 32 x 720P@30NVR508‑64E‑IQ:Smart Off：2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 64 x 720P@30Smart On：1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 24 x 1080P@30, 48 x 720P@30Audio

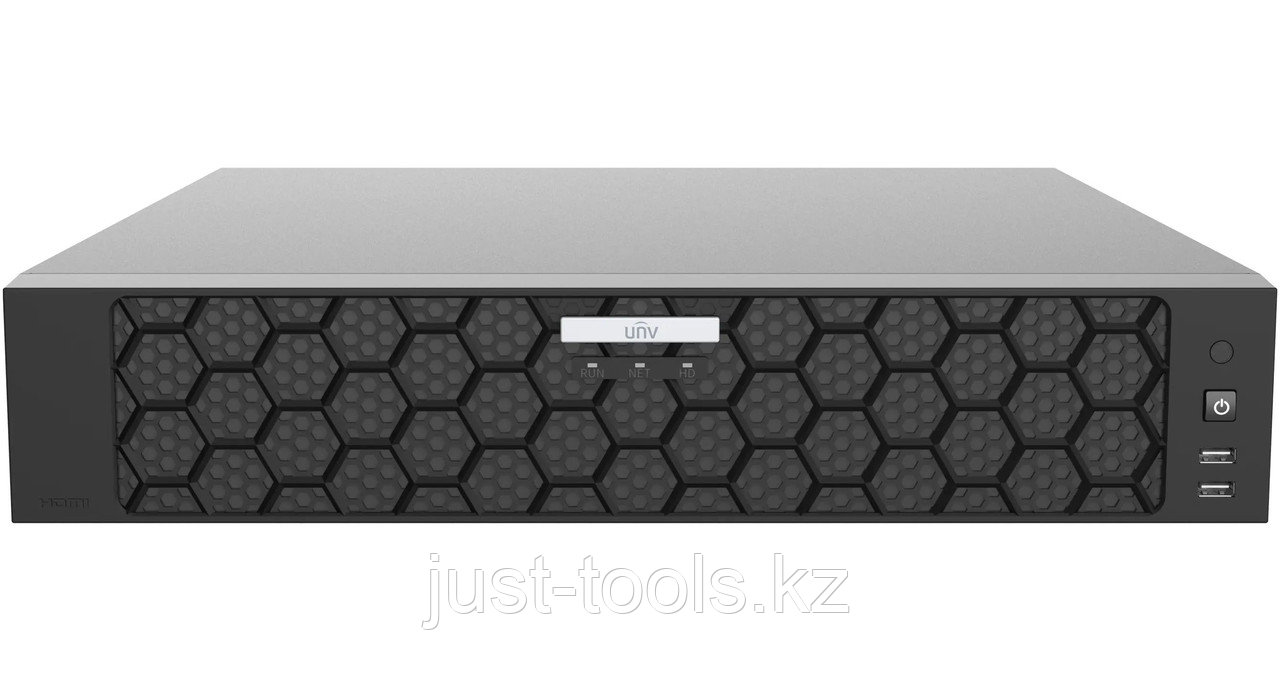

Model NVR508-16B NVR508-32B NVR508-64B Video/Audio InputIP Video Input16-ch32-ch64-chAudio Input1-ch, RCANetworkIncoming bandwidth320MbpsOutgoing bandwidth160MbpsRemote Users128ProtocolsTCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTPBrowserIE(IE10/11) for WindowsFirefox (version 52.0 and above) for WindowsChrome(version 45 and above) for WindowsEdge(version 79 and above) for WindowsVideo/Audio OutputHDMI/VGA OutputHDMI:4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60VGA:1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60Recording

DecodingDescriptionDecoding FormatUltra 265,H.265,H.264Decoding CapabilityNVR504‑16E‑IQ:Smart Off：2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, Smart On：1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30NVR504‑64E‑IQ:Smart Off：2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 64 x 720P@30Smart On：1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 24 x 1080P@30, 48 x 720P@30, 64 x D1NVR504‑32E‑IQ:Smart Off：2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30,

DecodingDescriptionDecoding FormatUltra 265,H.265,H.264Decoding CapabilityNVR504‑16E‑IQ:Smart Off：2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, Smart On：1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30NVR504‑64E‑IQ:Smart Off：2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 64 x 720P@30Smart On：1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 24 x 1080P@30, 48 x 720P@30, 64 x D1NVR504‑32E‑IQ:Smart Off：2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30,

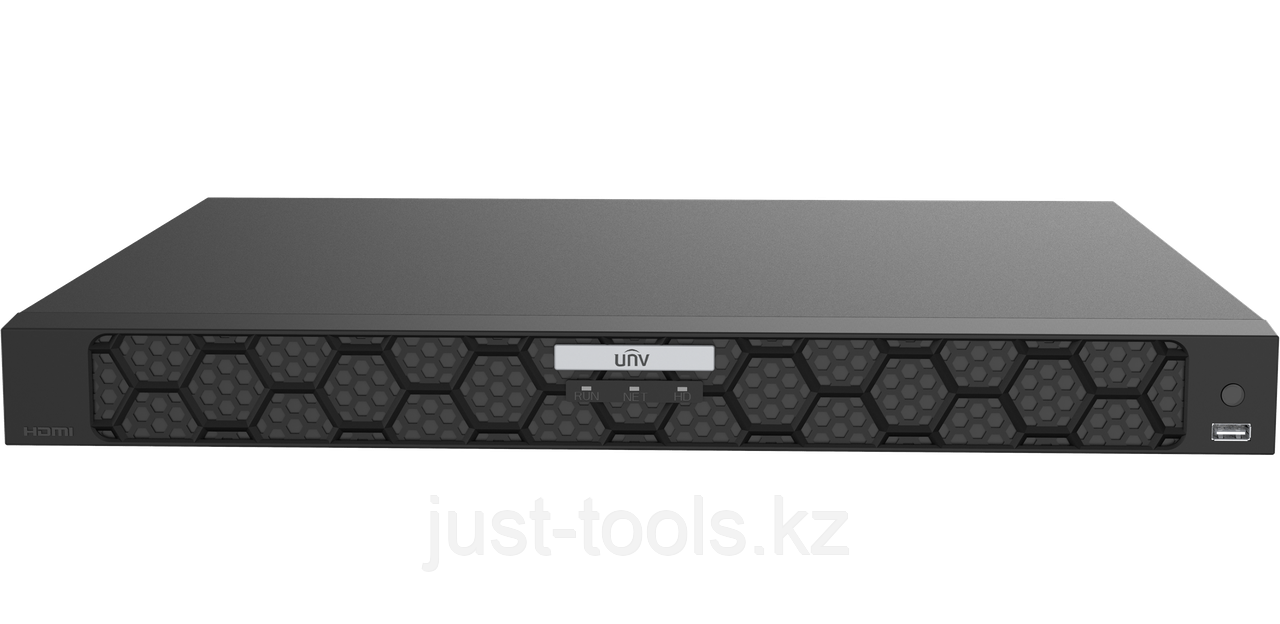

NVR504-16B NVR504-32B Decoding Decoding Format Ultra 265, H.265, H.264 Decoding Capability Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 16 x 720P@30 Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1 Decoding Capability Description The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width,

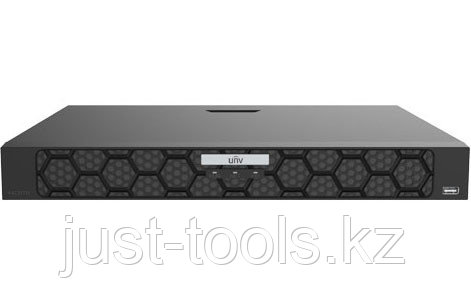

Model NVR502-08B-P8 NVR502-16B-P16 NVR502-32B-P16 Video/Audio Input IP Video Input 8-ch 16-ch 32-ch Audio Input 1-ch, RCA Network Incoming bandwidth 320Mbps Outgoing bandwidth 160Mbps Remote Users 128 Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPV6 Browser IE(IE10/11) for WindowsFirefox (version 52.0 and above) for WindowsChrome(version 45 and above) for WindowsEdge(version 79 and above) for Windows Video/Audio Output HDMI/VGA Output HDMI:4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60VGA:1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60,

Model NVR502-09B NVR502-16B NVR502-32B Video/Audio InputIP Video Input9-ch16-ch32-chAudio Input1-ch, RCANetworkIncoming bandwidth320MbpsOutgoing bandwidth160MbpsRemote Users128ProtocolsTCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTPBrowserIE(IE10/11) for WindowsFirefox (version 52.0 and above) for WindowsChrome(version 45 and above) for WindowsEdge(version 79 and above) for WindowsVideo/Audio OutputHDMI/VGA OutputHDMI:4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60VGA:1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60Recording

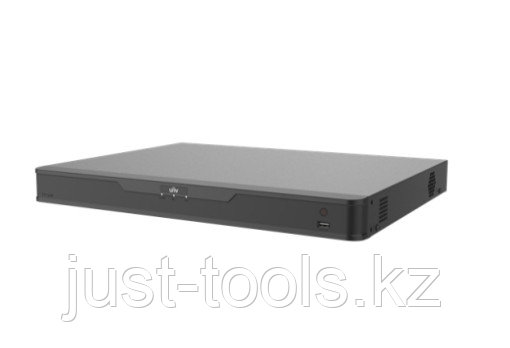

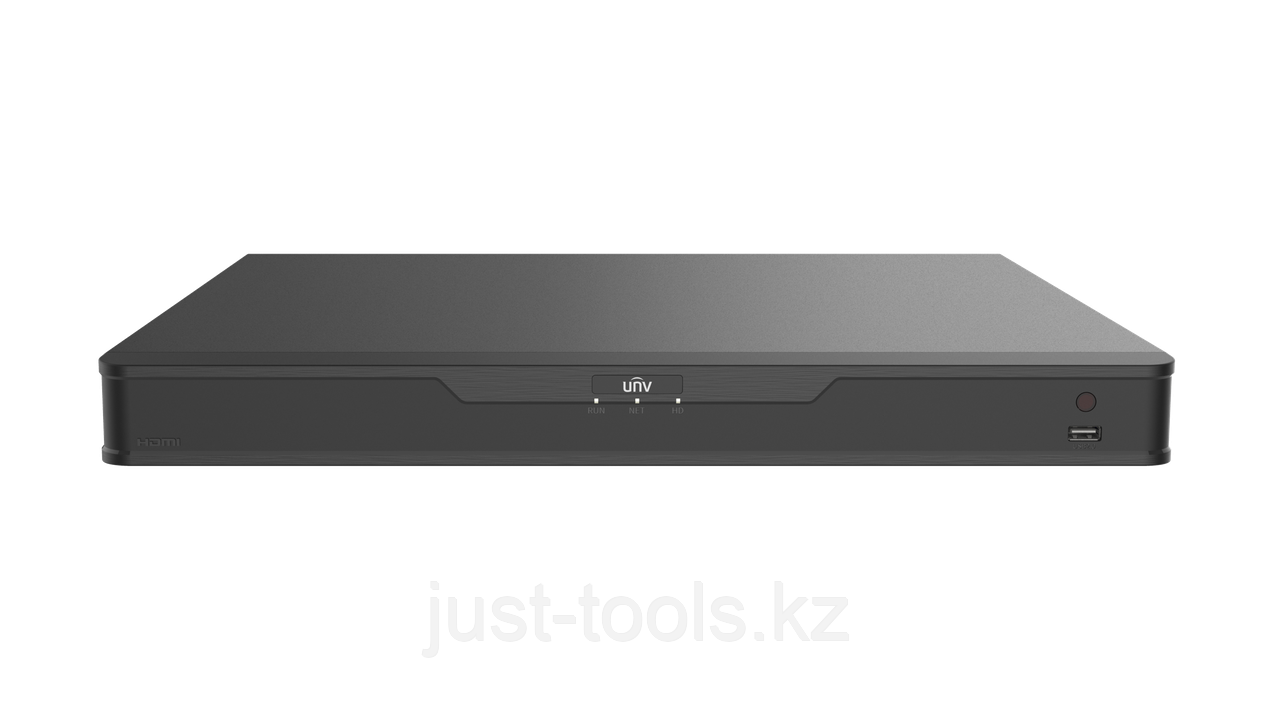

Описание Детали Формат декодирования Ultra 265, H.265, H.264 Возможности декодирования NVR304‑16B‑IQ: Smart Off: 2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 10 x 1080P@30, 16 x 720P@30 Smart On: 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30 NVR304‑32B‑IQ: Smart Off: 2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 10 x 1080P@30, 20 x 720P@30, 32 x D1 Smart On: 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30, 32 x D1 Аудио сжатие G.711A, G.711U Сеть Входная пропускная

Значение Описание Формат декодирования Ultra 265, H.265, H.264 Возможности декодирования NVR302-09B-IQ: Включено умное: 2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 9 x 1080P@30 Включено умное: 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 9 x 720P@30 NVR302-32B-IQ: Включено умное: 2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 10 x 1080P@30, 20 x 720P@30, 32 x D1 Включено умное: 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30, 32 x D1 NVR302-16B-IQ: Включено умное: 2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 10 x

Характеристика Описание Формат декодирования Ultra 265, H.265, H.264 Возможности декодирования Smart Off: 2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 10 x 1080P@30, 16 x 720P@30Smart On: 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30 Ограничение по разрешению Разрешение каждого канала не должно превышать 8192×4096 пикселей Аудиокодек G.711A, G.711U Входящая пропускная способность 160 Мбит/с Исходящая пропускная способность 128 Мбит/с

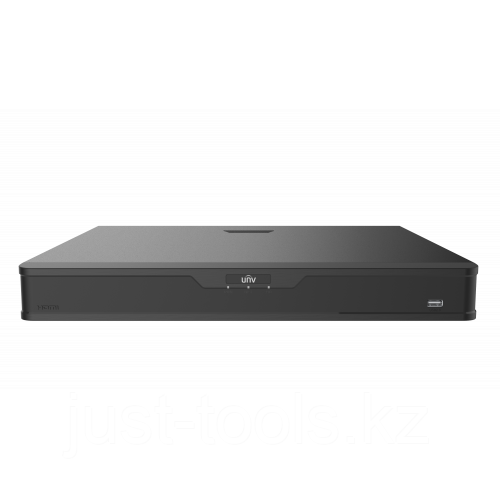

Характеристика Модель NVR302-09B-IQ NVR302-16B-IQ NVR302-32B-IQ Формат декодирования Ultra 265, H.265, H.264 Возможности декодирования (Smart Off) 2×12MP, 2×4K, 4×4MP, 9×1080P 2×12MP, 2×4K, 4×4MP, 10×1080P, 16×720P 2×12MP, 2×4K, 4×4MP, 10×1080P, 20×720P, 32×D1 Возможности декодирования (Smart On) 2×4K, 4×4MP, 8×1080P, 9×720P 2×4K, 4×4MP, 8×1080P, 16×720P 2×4K, 4×4MP, 8×1080P, 16×720P, 32×D1 Ограничение по разрешению

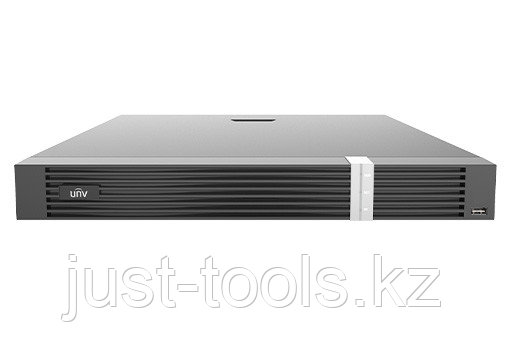

Model NVR302-09E2-IQNVR302-16E2-IQNVR302-32E2-IQVideo/Audio InputIP Video Input9-ch16-ch32-chTwo-way Audio Input1-ch, RCANetworkIncoming BandwidthSmart Off: 320MbpsSmart On: 160MbpsOutgoing BandwidthSmart Off: 320MbpsSmart On: 160MbpsRemote Users128ProtocolsTCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS,DNS,DDNS,SNMP,SMTP,NFSBrowserIE(IE10/11) for WindowsFirefox (version 52.0 and above) for WindowsChrome(version 45 and above) for WindowsEdge(version 79 and above) for WindowsVideo/Audio OutputHDMI/VGA OutputVGA:1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60HzHDMI:4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz,

ModelNVR301-16LX-P8Video/Audio InputIP Video Input16-chTwo-way Audio Input1-ch, RCANetworkIncoming Bandwidth80MbpsOutgoing Bandwidth64MbpsRemote Users128ProtocolsP2P, UPnP, NTP, DHCP, PPPoEVideo/Audio OutputHDMI/VGA OutputHDMI:4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60HzVGA:1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60HzRecording Resolution4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIFAudio Output1-ch, RCASynchronous Playback16-chCorridor Mode Screen3/4/5/7/9/10/12/16DecodingDecoding formatUltra 265/H.265/H.264Liveview/Playback4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIFCapability2

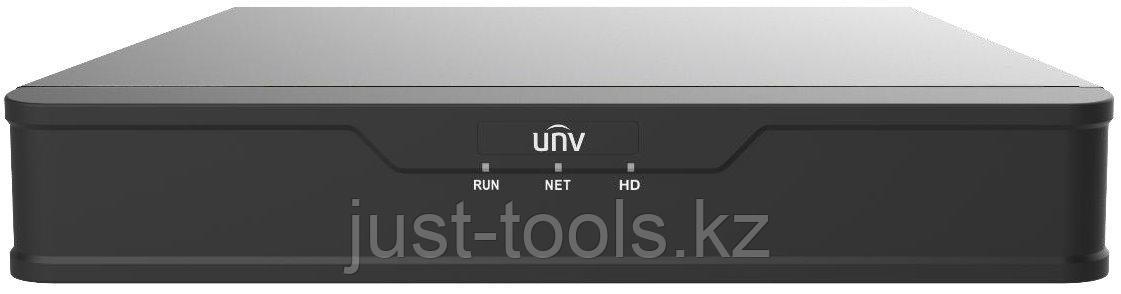

Декодирование Формат декодирования Ultra 265, H.265, H.264 Возможности декодирования NVR301‑04B‑IQ: Smart Off: 2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30 Smart On: 2 x 4K@30, 4 x 4MP@30 NVR301-08B-IQ: Smart Off: 2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30 Smart On: 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30 NVR301-16B-IQ: Smart Off: 2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 10 x 1080P@30, 16 x 720P@30 Smart On: 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30 Аудио кодек G.711A, G.711U Сеть Входящая/исходящая пропускная способность

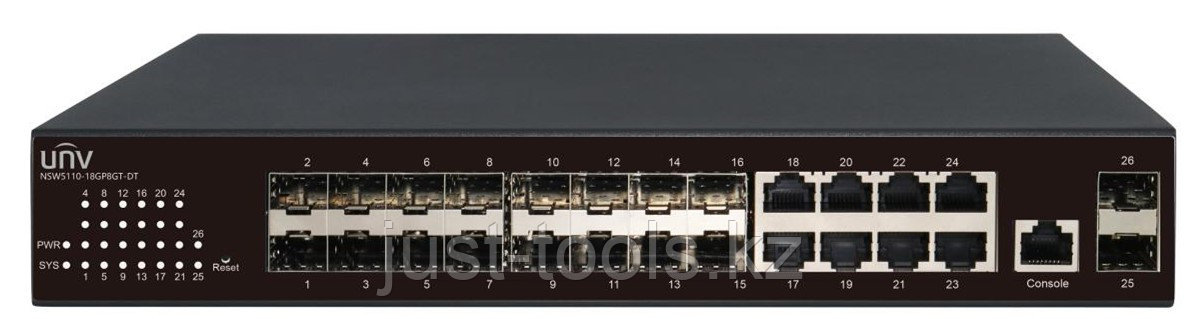

Характеристика Описание Модель 16G SFP+8GE+2G SFP Порты 16 * 1000 Мбит/с SFP слотов, 2 * 1000 Мбит/с SFP слота, 8 * 10/100/1000 Мбит/с RJ45 порта, 1 консольный порт Стандарты IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.1X, IEEE802.1q, IEEE802.1p, IEEE802.1d, IEEE802.1w, IEEE802.3ad Пропускная способность коммутации 52 Гбит/с Производительность передачи 38.69 Мpps Буфер пакетов 4.1 Мбит Размер Jumbo frame 10000 Байт

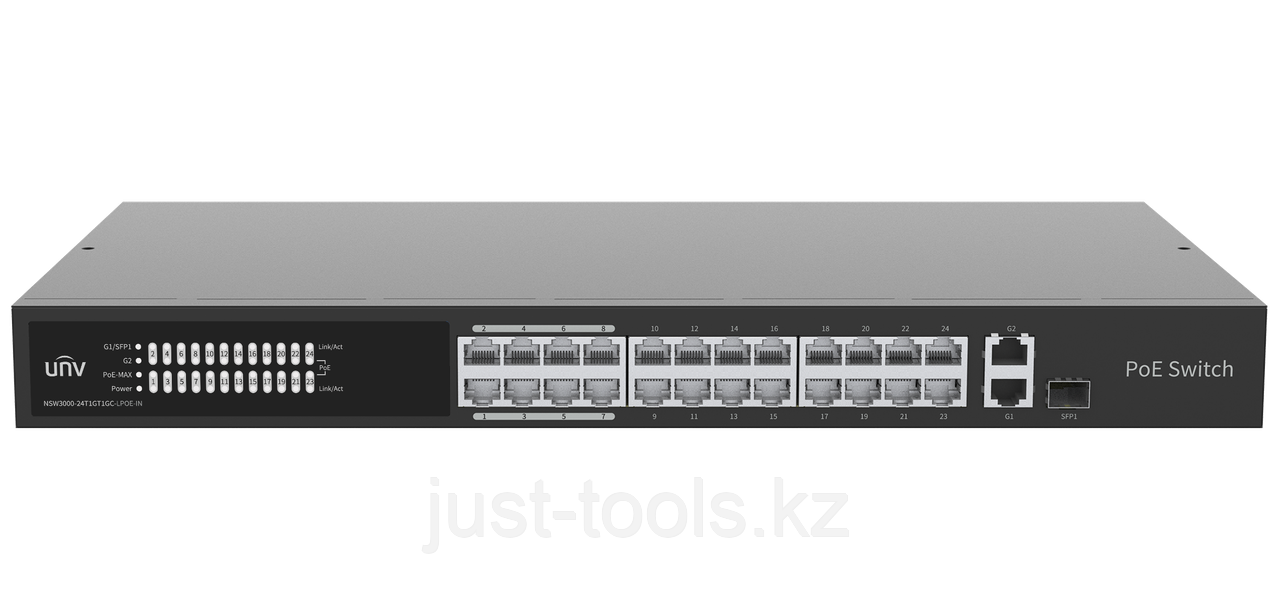

NSW3000-24T1GT1GC-POE-IN Hardware Specification Ports Type 24 x 10/100Mbps POE port (RJ45) + 1 x Gigabit port (RJ45) + 1 x Gigabit Combo Standards IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az Switching capacity 8.8 Gbps Forwarding performance 6.55Mpps Packet Buffer 4 M bit MAC 16K Weight 2.9kg Dimensions (W×D×H) 440mm x 244.8mm x 44mm Power Supply AC 100V to 240V, 50/60Hz Max.Power 385W Max.PoE Power Maximum total power: 370WMaximum PoE power for single port: 30WMode A, 1/2+, 3/6- Mode B, 4/5+, 7/8- Prior Ports 1 to 8 Cooling Fans 1 Operating temperature 0 ℃ to 40 ℃ (32 ℉ to 104 ℉) Operating

NSW3000-24T1GT1GC-LPOE-IN Hardware Specification Ports Type 24 x 10/100Mbps POE port (RJ45) + 1 x Gigabit port (RJ45) + 1 x Gigabit Combo Standards IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az Switching capacity 8.8 Gbps Forwarding performance 6.55Mpps Packet Buffer 4 M bit MAC 16K Weight 2.9kg Dimensions (W×D×H) 440mm x 244.8mm x 44mm Power Supply AC 100V to 240V, 50/60Hz Max.Power 265W Max.PoE Power Maximum total power: 250WMaximum PoE power for single port: 30WMode A, 1/2+, 3/6- Mode B, 4/5+, 7/8- Prior Ports 1 to 8 Cooling Fans 1 Operating temperature 0 ℃ to 40 ℃ (32 ℉ to 104 ℉) Operating

NSW3000-16T1GT1GC-POE-IN Hardware Specification Ports Type 16 x 10/100Mbps POE port (RJ45) + 1 x Gigabit port (RJ45)+ 1 x Gigabit Combo Standards IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az Switching capacity 7.2 Gbps Forwarding performance 5.36Mpps Packet Buffer 4 M bit MAC 16K Weight 2.1kg Dimensions (W×D×H) 440mm x 189.8mm x 44mm Power Supply AC 100V to 240V, 50/60Hz Max.Power 265W PoE support POE Max.PoE Power Maximum total power: 250WMaximum PoE power for single port: 30WMode A, 1/2+, 3/6- Mode B, 4/5+, 7/8- Prior Ports 1 to 8 Cooling Fans 1 Operating temperature 0 ℃ to 40 ℃ (32 ℉ to 104

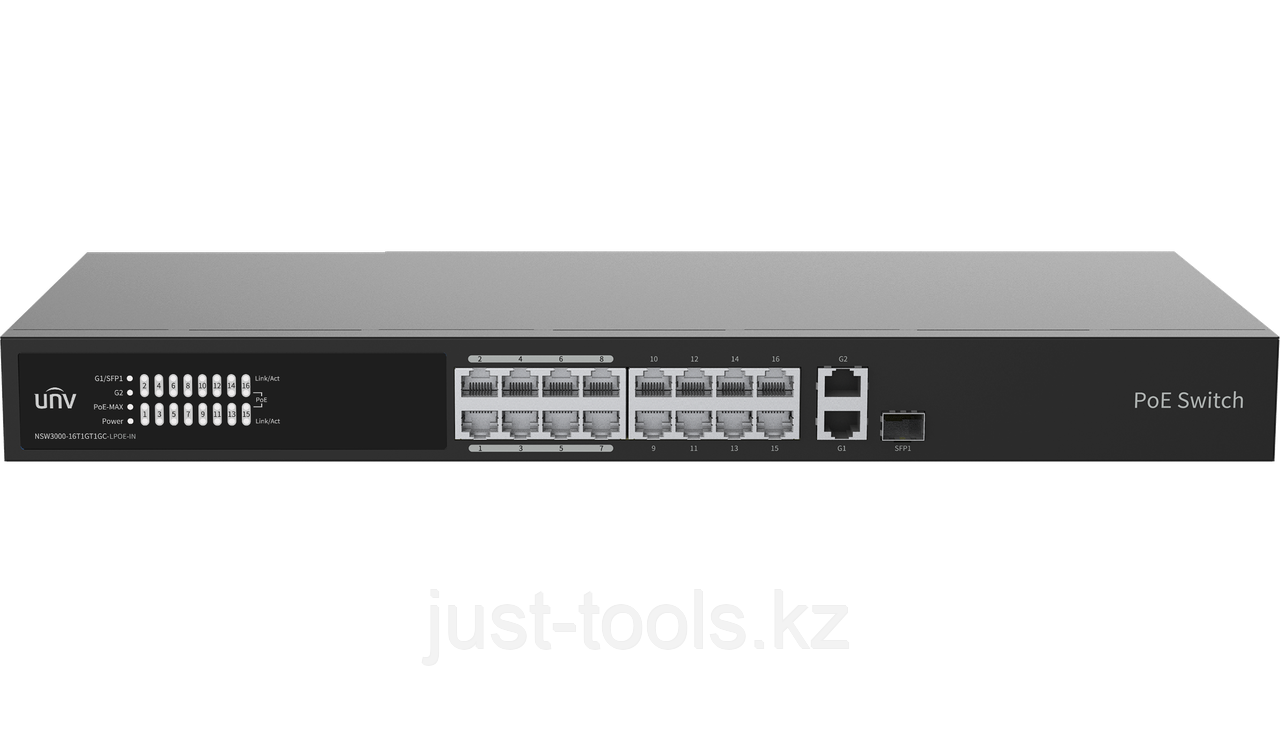

NSW3000-16T1GT1GC-LPOE-IN Hardware Specification Ports Type 16 x 10/100Mbps POE port (RJ45) + 1 x Gigabit port (RJ45)+ 1 x Gigabit Combo Standards IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az Switching capacity 7.2 Gbps Forwarding performance 5.36Mpps Packet Buffer 4 M bit MAC 16K Weight 2.1kg Dimensions (W×D×H) 440mm x 189.8mm x 44mm Power Supply AC 100V to 240V, 50/60Hz Max.Power 165W Max.PoE Power Maximum total power: 150WMaximum PoE power for single port: 30WMode A, 1/2+, 3/6- Mode B, 4/5+, 7/8- Prior Ports 1 to 8 Cooling Fans 0 Operating temperature 0 ℃ to 40 ℃ (32 ℉ to 104 ℉) Operating

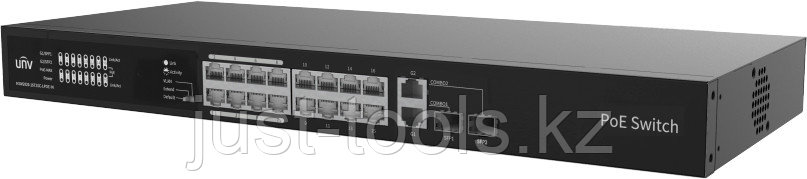

Параметр Значение Модель NSW2020-16T2GC-LPOE-IN Тип портов 16×100 Мбит/с PoE (RJ-45) + 2×1000 Мбит/с Combo Поддерживаемые стандарты IEEE 802.3, 802.3u, 802.3z, 802.3ab, 802.3x, 802.3af, 802.3at, 802.3az Коммутирующая способность 7,2 Gbps Производительность пересылки 5,36 Mpps Буфер пакетов 4 Mbit Таблица MAC-адресов 16 K Вес 1,93 кг Питание AC 100-240 V, 50/60 Hz

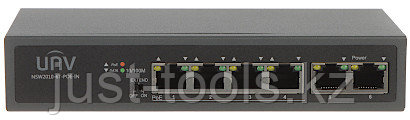

Порты6 сетевых портов 100 Мбит / с (RJ45), включая 4 порта PoEСтандартыIEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3atКоммутационная способность1,2 Гбит / сЭкспедирование0,90 млн пакетов в секундуПакетный буфер768 КбитMAC2KГабаритные размеры (Ш × Г × В)160 мм x 93 мм x 32 мм (6,3 дюйма × 3,7 дюйма × 1,3 дюйма)Вес 50000 часовРабочая Температура0 ° C-40 ° C (32 ° F-104 ° F)Влажность при эксплуатации10% ～ 90% (без
