Комплекты видеонаблюдения

CameraIPC6424SR-X25-VF-BSensor1/2.8", 4.0 megapixel, progressive scan, CMOSMin. IlluminationColour: 0.003 Lux (F1.5, AGC ON)0 Lux with IRDay/NightIR-cut filter with auto switch (ICR)ShutterAuto/Manual, 1 ~ 1/100000sWDR120dBS/N>56dBLensLens type4.8 ~ 120mm, AF automatic focusing and motorized zoom lensDigital Zoom16Optical Zoom25IrisAuto; F1.5 ~ F3.8Field of View (H)52.20°~2.74°Field of View (V)30.81°~1.54°Field of View (D)64.20°~3.23°DORIDORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)4.8119.3 (391.2ft)47.7 (156.5ft)23.9 (78.2ft)11.9 (39.1ft)1202475.0 (8120.1ft)990.0 (3248.0ft)495.0 (1624.0ft)247.5 (812.0ft)IlluminatorIR RangeUp to 100m (328 ft) IR

IPC675LFW-AX4DUPKC-VGCameraSensor1/2.7" progressive scan, 2.0 megapixel, CMOSLens2.8~12mm，AF automatic focusing and motorized zoom lensDORI DistanceLensDetect(m)Observe(m)Recognize(m)Identify(m)2.8mm63.025.212.66.312mm270.0108.054.027.0Angle of View (H)30.6°~104.1°Angle of View (V)17.4°~54.9°Angle of View (O)34.4°~108.3°ShutterAuto/Manual, shutter time: 1 s ~ 1/100000 sMinimum IlluminationColour:0.003 lux (F1.6,AGC ON)0 lux with IRDay/NightIR-cut filter with auto switch (ICR)Digital noise reduction2D/3D DNRS/N>52 dBIR RangeUP to 50m (164ft)Wavelength850nmIR On/Off ControlAuto/ManualWarm Light RangeUP to 10m (33ft)WDR120dBVideoVideo CompressionUltra 265,H.265, H.264, MJPEGH.264 code

Модель IPC6215SR-X5PAEW-VG Камера Датчик 1/2.7" CMOS Мин. освещенность Цвет: 0.003 lux (F1.2, AGC ON)0 lux с ИК День/Ночь ИК-фильтр с авто-переключением (ICR) Затвор Авто/Ручной, 1 – 1/100000 с WDR 120 dB S/N >56 dB Объектив Фокусное расстояние 2.7 – 13.5 мм Оптический зум 5× Диафрагма (Iris) F1.2 Угол обзора (Гориз.) 104.9° – 30.6° Угол обзора (Вертик.) 55.4° – 17.7°

IPC3635LB-ADZK-HCameraSensor1/2.7", 5.0 megapixel, progressive scan, CMOSMinimum IlluminationColour: 0.001 lux (F1.6, AGC ON)0 lux with IR onDay/NightIR-cut filter with auto switch (ICR)ShutterAuto/Manual, shutter time: 1 ~ 1/100000sAdjustment anglePan: 0° ~ 360°Tilt: 0° ~ 90°Rotate: 0° ~ 360°WDR120dBS/N>52 dBLensLens2.8 ~ 12mm, AF automatic focusing and motorized zoom lensIrisFixedField of View (H)96.4°~32.7°Field of View (V)51.3°~18.6°Field of View (D)101.2°~37.2°DORIDORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)2.863(206.7ft)25.2(82.7ft)12.6(41.3ft)6.3(20.7ft)12270.0(885.8ft)108.0(354.3ft)54.0(177.2ft)27.0(88.6ft)IlluminatorIR RangeUp to 40m (131ft) IR

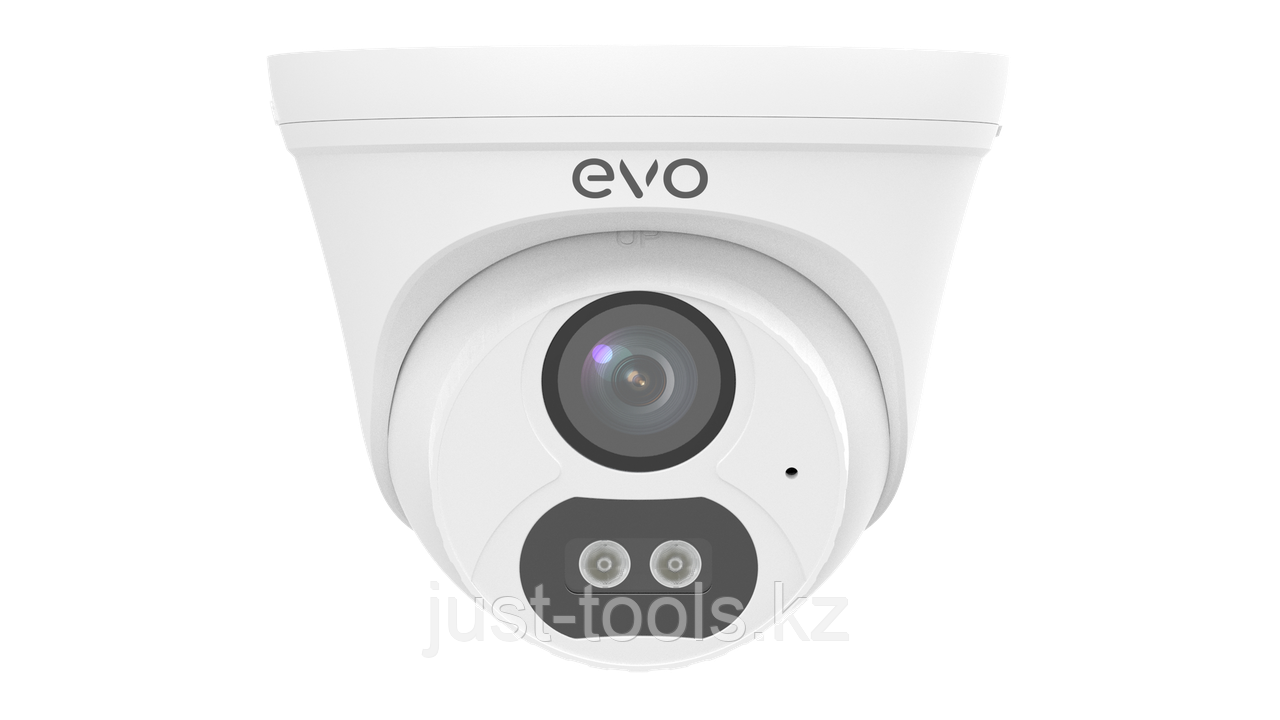

IPC3634LB-ADZK-H Camera Max Resolution 4 MP Sensor 1/3.0" CMOS Min. Illumination Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with IR on Day/Night IR-cut filter with auto switch (ICR) Shutter Auto/Manual, 1 ~ 1/100000s Adjustment Angle Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° S/N >52 dB WDR 120 dB Lens Focal Length 2.8 to 12 mm Iris Type Fixed Iris F1.6 Field of View (H) 91.5° to 34° Field of View (V) 51.0° to 18.9° Field of View (D) 96.0° to 36.9° DORI DORI Distance (Lens) 2.8 to 12 mm DORI Distance (Detect) 63.0 m to 270.0 m (206.7 ft. to 885.8 ft) DORI Distance (Observe) 25.2 m to 108.0 m (82.7 ft. to 354.3 ft) DORI

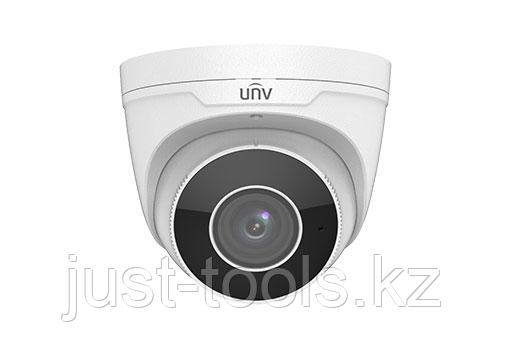

IPC3634LB-ADZK-GCameraSensor1/3", 4.0 megapixel, progressive scan, CMOSMinimum IlluminationColour: 0.003Lux (F1.6, AGC ON)0Lux with IRDay/NightIR-cut filter with auto switch (ICR)ShutterAuto/Manual, 1 ~ 1/100000sAdjustment anglePan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°S/N>56dBWDR120dBLensLens Type2.8 ~ 12mm, AF automatic focusing and motorized zoom lensLens MountΦ14Angle of View (H)102.79°~ 30.86°Angle of View (V)54.50°~ 17.49°Angle of View (O)106.94°~35.49°DORIDORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)2.863.025.212.66.312270.0108.054.027.0IlluminatorIR RangeUp to 40m (131ft) IR rangeWavelength850nmIR On/Off ControlAuto/ManualVideoVideo

IPC3628LE-ADF28K-WP IPC3628LE-ADF40K-WP Camera Max Resolution 8 MP Sensor 1/1.8" CMOS Min. Illumination Colour: 0.0003 lux (F1.0, AGC ON) Shutter Auto/Manual, 1 ~ 1/100000s Adjustment Angle Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° S/N >52 dB WDR 120 dB Lens Focal Length 2.8 mm 4.0 mm Iris Type Fixed Iris F1.0 Field of View (H) 111.0° 94.2° Field of View (V) 63.0° 51.0° Field of View (D) 131.0° 111.7° Lens Type Fixed DORI DORI Distance (Lens) 2.8mm 4.0mm DORI Distance (Detect) 63.0 (206.7ft) 90.0(295.3ft) DORI Distance (Observe) 25.2 (82.7ft) 36.0(118.1ft) DORI Distance (Recognize) 12.6 (41.3ft) 18.0(59.1ft) DORI Distance

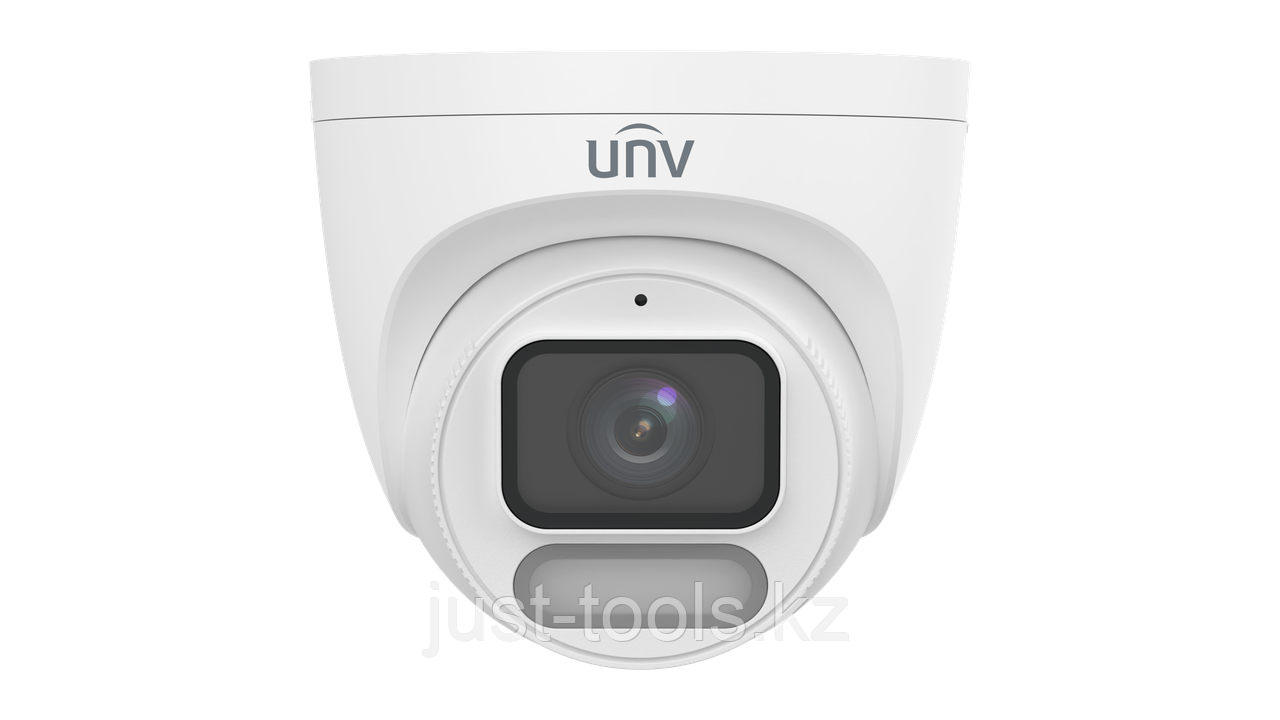

Параметр IPC3624LE-ADF28K-WP-L(объектив 2,8 мм) IPC3624LE-ADF40K-WP-L(объектив 4,0 мм) Камера Максимальное разрешение 4 Мп (2560 × 1440) Сенсор 1/1,8″ CMOS Мин. освещённость Цвет 0,0003 lux (F1.0, AGC ON) Затвор Авто/Ручной, 1 – 1/100 000 с Угол регулировки Пан 0–360°, Наклон 0–75°, Поворот 0–360° Соотношение сигнал/шум > 52 дБ WDR 120 дБ Объектив Фокусное расстояние 2,8 мм 4,0 мм Диафрагма F1.0

IPC3624LE-ADF28K-WPIPC3624LE-ADF40K-WPCameraSensor1/1.8″, 4.0 megapixel, progressive scan, CMOSMinimum IlluminationColour: 0.0003lux (F1.0, AGC ON)ShutterAuto/Manual, 1 ~ 1/100000sAdjustment anglePan: 0° ~ 360°Tilt: 0° ~ 75°Rotate: 0° ~ 360°WDR120dBS/N>52dBLensLens2.8mm@F1.04.0mm@F1.0IrisFixedField of View (H)110.4°89.4°Field of View (V)60.5°48.2°Field of View (D)115.2°94.7°DORIDORI DistanceLens (mm)Detect（m）Observe（m）Recognize（m）Identify（m）2.843.4(142.5ft)17.4(57.0ft)8.7(28.5ft)4.3(14.3ft)4.062.1(203.6ft)24.8(81.5ft)12.4(40.7ft)6.2(20.4ft)IlluminatorWarm Light RangeUp to 30m (98ft)Light On/Off ControlAuto/ManualVideoVideo CompressionUltra265, H.265, H.264,

Параметр IPC3622LE-ADF28K-WP-L(объектив 2,8 мм) IPC3622LE-ADF40K-WP-L(объектив 4,0 мм) Камера Максимальное разрешение 2 Мп (1920 × 1080) Сенсор 1/2,7″ CMOS Мин. освещённость Цвет 0,0003 lux (F1.0, AGC ON) Затвор Авто/Ручной, 1 – 1/100 000 с Угол регулировки Пан 0–360°, Наклон 0–75°, Поворот 0–360° Соотношение сигнал/шум > 52 дБ WDR 120 дБ (True WDR) Объектив Фокусное расстояние 2,8 мм 4,0 мм Диафрагма F1.0

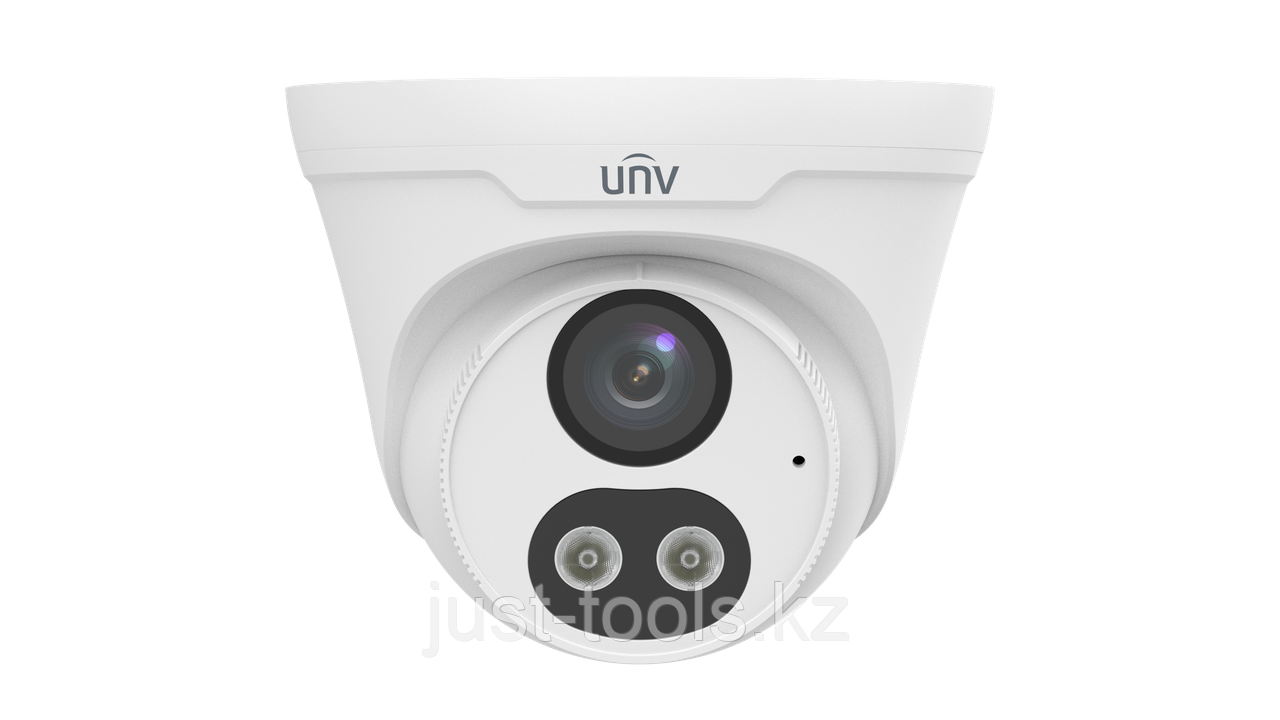

Характеристика IPC3614LE-ADF28KC-DL IPC3614LE-ADF40KC-DL Максимальное разрешение 4 МП Сенсор 1/3.0" CMOS Мин. освещённость Цвет: 0.003 люкс (F1.6, AGC ВКЛ); 0 люкс с подсветкой День/ночь ИК-фильтр с автопереключением (ICR) Затвор Авто/Ручной, 1 ~ 1/100000 с Угол регулировки Панорама: 0–360°, Наклон: 0–80°, Поворот: 0–360° S/N >52 дБ WDR 120 дБ Фокусное расстояние 2.8 мм 4.0 мм Тип диафрагмы

Camera Description Resolution 4MP Sensor 1/3.0" CMOS Min. Illumination Colour: 0.01 lux ( F1.6, AGC ON)0 lux with IR Day/Night IR‑cut filter with auto switch (ICR) Shutter Auto/Manual, 1 ~ 1/100000s Adjustment angle Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360° S/N >52dB WDR DWDR Lens Description Lens type 2.8mm Iris Type Fixed Iris F1.6 Field of View (H) 97.0° Field of View (V) 52.2° Field of View (D) 107.5° DORI Description DORI Distance（Lens） 2.8mm DORI Distance（Detect） 63.0m(206.7t) DORI Distance（Observe） 25.2m(82.7ft) DORI Distance（Recognize） 12.6m(41.3ft) DORI Distance（Identify） 6.3m(20.7ft) Illuminator

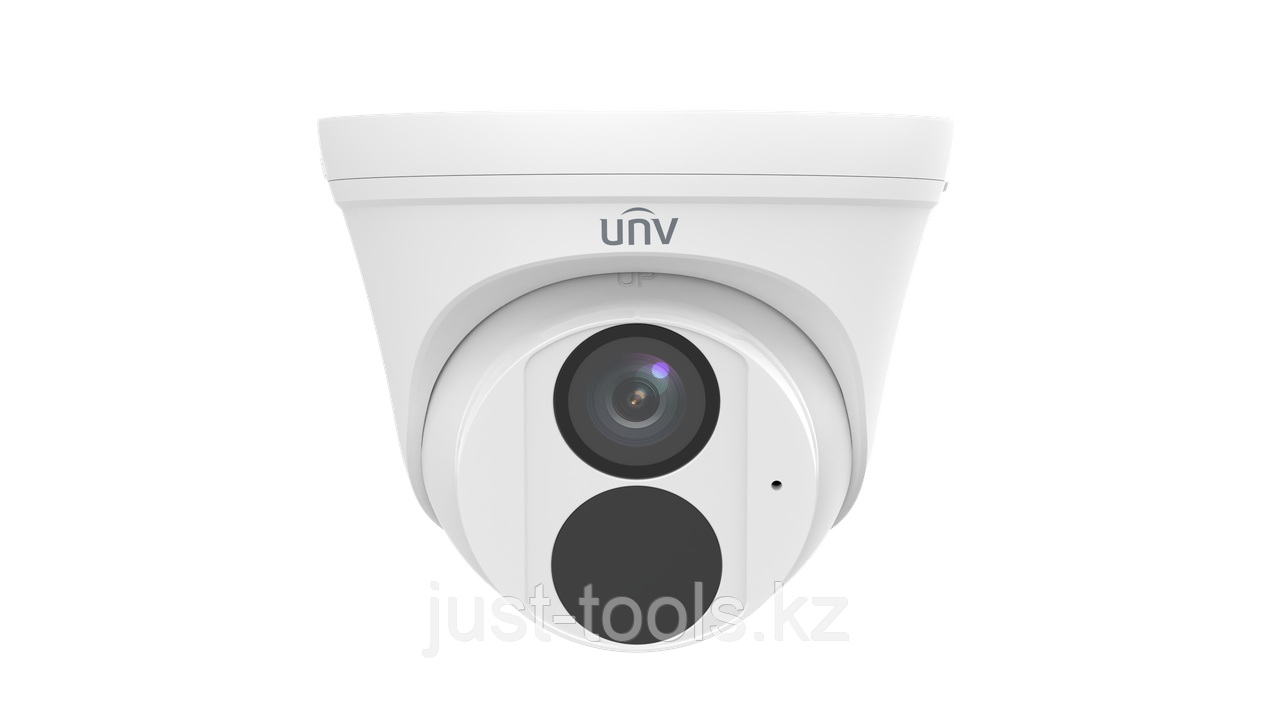

IPC3614LB-AF28-A2 IPC3614LB-AF40-A2 Camera Max Resolution 4 MP Sensor 1/3.0" CMOS Min. Illumination Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on Day/Night IR-cut filter with auto switch (ICR) Shutter Auto/Manual, 1 to 1/100000 s Adjustment Angle Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360° S/N > 52 dB WDR DWDR Lens Focal Length 2.8 mm 4.0 mm Iris Type Fixed Iris F2.0 Field of View (H) 94.3° 73.4° Field of View (V) 52.2° 40.4° Field of View (D) 99.6° 79.5° Lens Type Fixed DORI DORI Distance (Lens) 2.8 mm 4 mm DORI Distance (Detect) 63.0 m (206.7 ft.) 90.0 m (295.3 ft.) DORI Distance (Observe) 25.2 m (82.7 ft.) 36.0 m

IPC3613LR3-AF28K-G IPC3613LR3-AF40K-GCameraSensor1/2.8", 3.0 megapixel, progressive scan, CMOSLens2.8mm@F2.04.0mm@F2.0DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)2.851.420.610.35.14.073.529.414.77.3Angle of view (H)109.2°89.0°Angle of View (V)57.9°46.9°Angle of View (O)117.8°93.8°ShutterAuto/Manual, 1 ~ 1/100000sAdjustment anglePan: 0° ~ 360°Tilt: 0° ~ 80°Rotate: 0° ~ 360°Min. IlluminationColour: 0.005Lux (F2.0, AGC ON)0Lux with IRDay/NightIR-cut filter with auto switch (ICR)Digital noise reduction2D/3D DNRS/N>52dBIR RangeUp to 30m (98ft) IR rangeWDRDWDRVideoVideo CompressionUltra 265, H.265, H.264H.264 code profileBaseline profile, Main Profile, High

IPC3612LE-ADF28KC-DL IPC3612LE-ADF40KC-DL Camera Max Resolution 2 MP Sensor 1/2.8" CMOS Min. Illumination Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with light Day/Night IR-cut filter with auto switch (ICR) Shutter Auto/Manual, 1 ~ 1/100000s Adjustment Angle Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360° S/N >52 dB WDR 120 dB Lens Focal Length 2.8 mm 4.0 mm Iris Type Fixed Iris F1.6 Field of View (H) 106.7° 87.5° Field of View (V) 57.1° 46.3° Field of View (D) 115.7° 92.4° DORI DORI Distance (Lens) 2.8 mm 4 mm DORI Distance (Detect) 43.4 m (142.4 ft.) 62.1 m (203.7 ft.) DORI Distance (Observe) 17.4 m (57.1 ft.) 24.8 m (81.4 ft.)

IPC3612LB-AF28K-WLCameraSensor1/2.9", 2.0 megapixel, progressive scan, CMOSMinimum IlluminationColour: 0.005 lux ( F1.6, AGC ON) ShutterAuto/Manual, 1 ~ 1/100000sAdjustment AnglePan: 0° ~ 360° Tilt: 0° ~ 80°Rotate: 0° ~ 360°WDRDWDRS/N>52dBLensLens type2.8mm@F1.6IrisFixedField of View (H)101.1°Field of View (V)55.0°Field of View (D)111.0°DORIDORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)2.845.0(147.6ft)18.0(59.1ft)9.0(29.5ft)4.5(14.8ft)IlluminatorWarm Light RangeUp to 30m (98ft)Light On/Off ControlAuto/ManualVideoVideo CompressionUltra H.265,H.265, H.264Frame RateMain Stream: 2MP (1920*1080),Max 30fps; 720P (1280*720),Max 30fpsSub Stream: D1 (720*576), Max

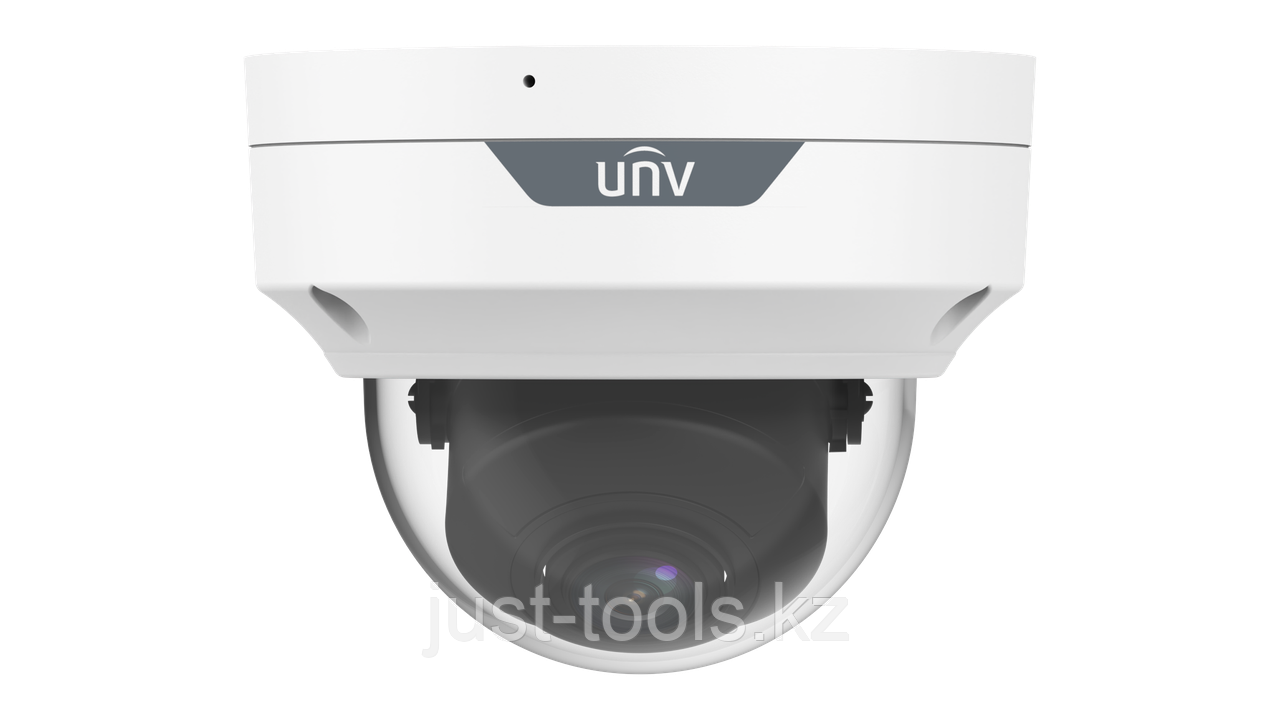

IPC3532LB-ADZK-H Camera Max Resolution 2 MP Sensor 1/2.7" CMOS Min. Illumination Colour: 0.003 lux (F1.6, AGC ON)0 lux with IR on Day/Night IR-cut filter with auto switch (ICR) Shutter Auto/Manual, 1 ~ 1/100000s Adjustment Angle Pan: 3° ~ 360°, Tilt: 0° ~ 70°, Rotate: 3° ~ 360° S/N >52 dB WDR 120 dB Lens Focal Length 2.8 to 12 mm Iris Type Fixed Iris F1.6 Field of View (H) 103.6°~33.4° Field of View (V) 54.8°~18.7° Field of View (D) 107.9°~37.8° DORI DORI Distance (Lens) 2.8mm, 12mm DORI Distance (Detect) 43.4m(142.5ft), 186.2m(610.9ft) DORI Distance (Observe) 17.4m(57.0ft), 74.5m(244.4ft) DORI Distance (Recognize) 8.7m(27.5ft),

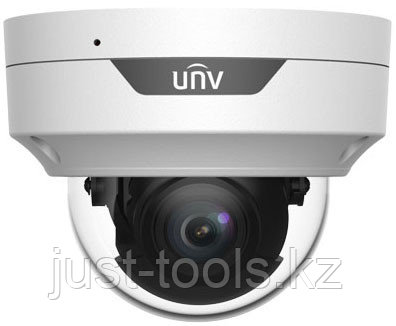

IPC3514LE-ADF28K-WPIPC3514LE-ADF40K-WPCameraSensor1/1.8″, 4.0 megapixel, progressive scan, CMOSMinimum IlluminationColour: 0.0003lux (F1.0, AGC ON)ShutterAuto/Manual, 1 ~ 1/100000sAdjustment anglePan: 8° ~ 360°Tilt: 0° ~ 68°Rotate: 10° ~ 360°WDR120dBS/N>52dBLensLens2.8mm@F1.04.0mm@F1.0IrisFixedField of View (H)110.4°89.4°Field of View (V)60.5°48.2°Field of View (D)115.2°94.7°DORIDORI DistanceLens (mm)Detect（m）Observe（m）Recognize（m）Identify（m）2.843.4(142.5ft)17.4(57.0ft)8.7(28.5ft)4.3(14.3ft)4.062.1(203.6ft)24.8(81.5ft)12.4(40.7ft)6.2(20.4ft)VideoVideo CompressionUltra265, H.265, H.264, MJPEGH.264 code profileBaseline profile, Main profile, High profileFrame

IPC3612LB-ADF28K-GIPC3612LB-ADF40K-GCameraSensor1/2.7", 2.0 megapixel, progressive scan, CMOSLens2.8mm@F2.04.0mm@F2.0DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)2.842.016.88.44.24.060.024.012.06.0Angle of View (H)112.9°91.2°Angle of View (V)59.1°47.9°Angle of View (O)121.2°95.9°Adjustment anglePan: 0° ~ 360°Tilt: 0° ~ 80°Rotate: 0° ~ 360°ShutterAuto/Manual, 1 ~ 1/100000sMinimum IlluminationColour: 0.01Lux ( F2.0, AGC ON) 0Lux with IRDay/NightIR-cut filter with auto switch (ICR)Digital Noise Reduction2D/3D DNRS/N>52dBIR RangeUp to 30m (98ft) IR rangeWavelength850nmIR On/Off ControlAuto/ManualDefogDigital DefogWDR120dBVideoVideo CompressionUltra 265, H.265,

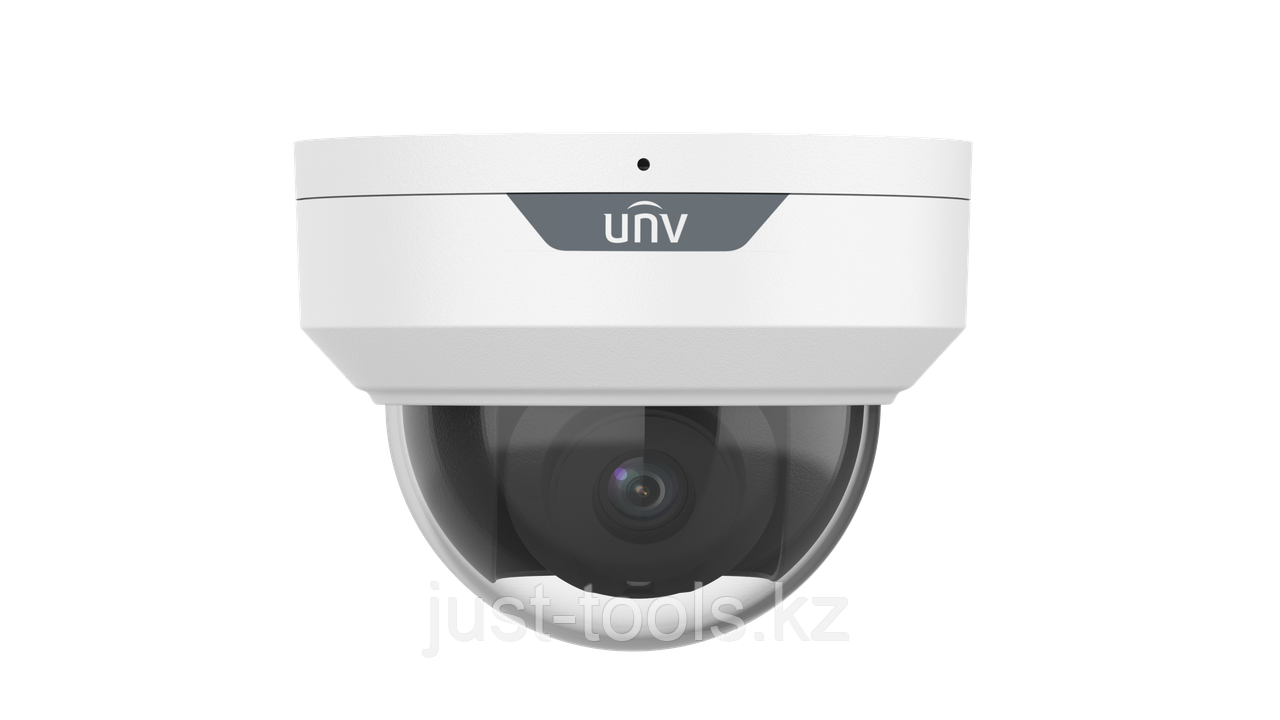

Параметр IPC324LB-AF28-A2(объектив 2,8 мм) IPC324LB-AF40-A2(объектив 4,0 мм) Камера Максимальное разрешение 4 Мп (2560 × 1440) Сенсор 1/3.0″ CMOS Мин. освещённость Цвет: 0,01 lux (F2.0, AGC ON); 0 lux с ИК-подсветкой День/Ночь Механический ИК-фильтр (ICR) Затвор Авто/Ручной, 1 – 1/100 000 с Угол регулировки Пан 3–360°, Наклон 0–75° Соотношение сигнал/шум > 52 дБ WDR DWDR Объектив Фокусное

Параметр IPC322LB-AF28-A2(2.8 мм) IPC322LB-AF40-A2(4.0 мм) Камера Макс. разрешение 2 МП Сенсор 1/3" CMOS Мин. освещённость Цвет: 0,01 лк (F2.0, AGC Вкл) • 0 лк с ИК День/Ночь Механический ИК-фильтр (ICR) Выдержка Авто / вручную, 1 – 1/100 000 с Угол регулировки Пан 3°–360°, Наклон 0°–75° Отношение сигнал/шум > 52 дБ WDR DWDR Объектив Фокусное расстояние 2,8 мм 4,0 мм Апертура F2.0 (фикс.)

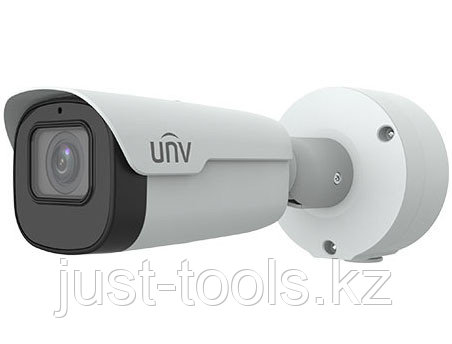

IPC2A24SE-ADZK-I0CameraSensor1/1.8", 4.0 megapixel, progressive scan, CMOSMin. IlluminationColour:0.0005 lux (F1.2, AGC ON)0 lux with IRDay/NightIR-cut filter with auto switch (ICR)ShutterAuto/Manual, 1 ~ 1/100000sWDR120dBS/N>56dBLensLens type2.8~12mm@F1.2, AF automatic focusing and motorized zoom lensIrisFixedAngle of View (H)42.6°~113.7°Angle of View (V)24.1°~59.0°Angle of View (O)4.12°~74.38°DORIDORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)2.868.0(223.0ft)27.2(89.2ft)13.6(44.6ft)6.8(22.3ft)12166.2(545.2ft)66.5(218.1ft)33.2(109.0ft)16.6(54.5ft)IlluminatorIR RangeUp to 80m (262 ft) IR rangeWavelength850nmIR On/Off ControlAuto/ManualVideoVideo CompressionUltra

IPC264SA-DZKCameraSensor1/1.8", 4.0 megapixel, progressive scan, CMOSLens2.8-12mm@F1.2, AF automatic focusing and motorized zoom lensIrisAuto apertureDORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)2.8-1242-18016.8-728.4-364.2-18Angle of View (H)35.6°~107.9°Angle of View (V)20.4°~75.4°Angle of View (O)43.8°~140.3°ShutterAuto/Manual, 1 ~ 1/100000sMin. IlluminationColour:0.0005lux (F1.2, AGC ON)0 lux with IRWDR120dBDay/NightIR-cut filter with auto switch (ICR)VideoVideo CompressionUltra 265,H.265,H.264,MJPEGFrame Rate4MP(2688*1520),Max 30fps9:16 corridor modeSupportedROISupportedVideo streamTriple streamsOSDUp to 8 OSDsPrivacy MaskSupportedSmartGeneral

IPC2325LB-ADZK-HCameraSensor1/2.7", 5.0 megapixel, progressive scan, CMOSMinimum IlluminationColour: 0.001 lux (F1.6, AGC ON)0 lux with IR onDay/NightIR-cut filter with auto switch (ICR)ShutterAuto/Manual, shutter time: 1 ~ 1/100000sAdjustment anglePan: 0° ~ 360°Tilt: 0° ~ 90°Rotate: 0° ~ 360°WDR120dBS/N>52 dBLensLens2.8 ~ 12mm, AF automatic focusing and motorized zoom lensIrisFixedField of View (H)96.4°~32.7°Field of View (V)51.3°~18.6°Field of View (D)101.2°~37.2°DORIDORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)2.863(206.7ft)25.2(82.7ft)12.6(41.3ft)6.3(20.7ft)12270.0(885.8ft)108.0(354.3ft)54.0(177.2ft)27.0(88.6ft)IlluminatorIR RangeUp to 50m
