Product SKUs CSE-733TQ-500B SuperChassis 733TQ-500B Form Factor Mid-tower chassis - supports for maximum motherboard sizes: 12" x 13" E-ATX and ATX Processor Support Dual and Single Intel® and AMD processors Dimensions Height16.8" (426 mm)Width7" (178 mm)Depth20.9" (531 mm)Net Weight37 lbs (16.78 kg)Gross Weight39 lbs (17.69 kg)Packaging (W x H x L)24.2" (615 mm) x 11.8" (300 mm) x 26.4" (671 mm)Available ColorBlack Expansion Slots 7 full-height & full-length expansion slot(s) Drive Bays 4 x 3.5" hot-swap SAS/SATA drive bay with SGPIO Backplane 4x3.5" SAS2/SATA3 backplane w/SES-II Peripheral Drives 2 x standard 5.25" drive bay1 x 3.5" internal fixed drive bay Front Panel ButtonsPower On/Off

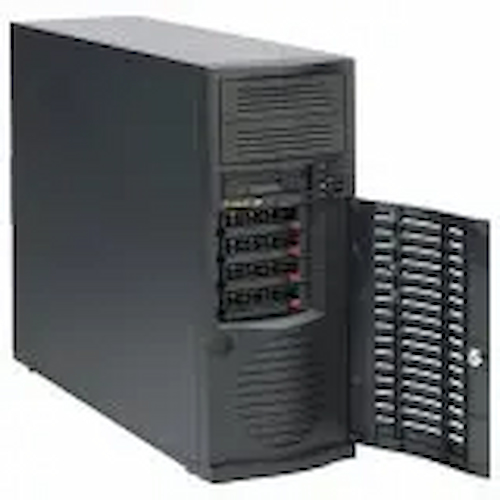

Product SKUs CSE-733TQ-668B SuperChassis 733TQ-668B Form Factor Mid-tower chassis - supports for maximum motherboard sizes: 12" x 13" E-ATX and ATX Processor Support Dual and Single Intel® and AMD processors Dimensions Height16.8" (426 mm)Width7" (178 mm)Depth20.9" (531 mm)Net Weight38 lbs (17.24 kg)Gross Weight40 lbs (18.14 kg)Packaging (W x H x L)24.2" (615 mm) x 11.8" (300 mm) x 26.4" (671 mm)Available ColorBlack Expansion Slots 7 full-height & full-length expansion slot(s) Drive Bays 4 x 3.5" hot-swap SAS/SATA drive bay with SGPIO Backplane 4x3.5" SAS2/SATA3 backplane w/SES-II Peripheral Drives 2 x standard 5.25" drive bay1 x 3.5" internal fixed drive bay Front Panel ButtonsPower On/Off

ДАННАЯ МОДЕЛЬ СНЯТА С ПРОИЗВОДСТВАCSE-813MTQ-350CB SuperChassis 813MTQ-350CB Form Factor 1U chassis supports for maximum motherboard sizes - ATX 12" x 10" and Micro-ATX 9.6" x 9.6" Processor Support Dual, single Intel® / AMD processors Dimensions Height1.7" (43 mm)Width17.2" (437 mm)Depth19.85" (503 mm)Gross Weight31 lbs (14.06 kg)Packaging (W x H x L)23.4" (594 mm) x 8.5" (216 mm) x 29.7" (754 mm)Available ColorBlack Expansion Slots 1 full-height & half-length expansion slot(s) (Riser Card Required) Drive Bays 4 x 3.5" hot-swap SAS/SATASAS or enterprise SATA HDD only recommended Backplane 4-port 1U TQ backplane (W/ enclosure management), support up to 4x

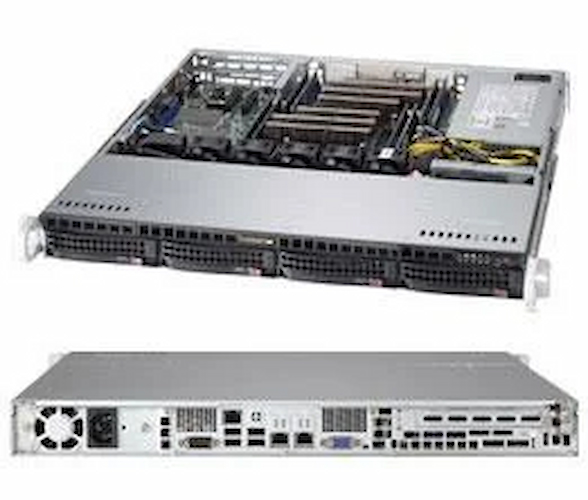

Product SKUs CSE-813MFTQC-505CB SuperChassis 813MFTQC-505CB Form Factor1U Chassis for motherboard support size: (12" x 10") (9.6" x 9.6") Processor Support Dual, single Intel® / AMD processors Dimensions Height1.7" (43 mm)Width17.2" (437 mm)Depth19.85" (503 mm)Net WeightN/A lbs (N/A kg)Gross Weight31 lbs (14.06 kg)Packaging (W x H x L)23.4" (594 mm) x 8.5" (216 mm) x 29.7" (754 mm)Available ColorBlack Expansion Slots 1 full height expansion slot(s) Drive Bays 4 x 3.5" hot-swap SAS/SATA drive bay with SES2 Backplane 1U 4-Port 12Gbps Backplane Support 4x3.5 Peripheral Drives Optional 1 x Slim DVD-ROM Drive Front Panel ButtonsPower On/Off buttonSystem Reset ButtonLEDs2 Network Activity LEDsHDD

Product SKUs CSE-813MF2TQC-505CB SuperChassis 813MF2TQC-505CB Form Factor1U Chassis for motherboard support size: (12" x 10") (9.6" x 9.6") Processor Support Dual, single Intel® / AMD processors Dimensions Height1.7" (43 mm)Width17.2" (437 mm)Depth19.98" (507 mm)Net WeightN/A lbs (N/A kg)Gross Weight31 lbs (14.06 kg)Packaging (W x H x L)23.4" (594 mm) x 8.5" (216 mm) x 29.7" (754 mm)Available ColorBlack Expansion Slots 1 full height expansion slot(s) Drive Bays 4 x 3.5" hot-swap SAS/SATA drive bay with SES2 Backplane 1U 4-Port 12Gbps Backplane Support 4x3.5 Peripheral Drives Optional 1 x Slim DVD-ROM Drive Front Panel ButtonsPower On/Off buttonSystem Reset ButtonLEDs2 Network Activity

Сервер (Barebone), Supermicro SuperServer SYS-5039D-I, Mid Tower,Single SKT LGA 1151, C232 chipset,4 x DIMMs, 3 x PCIe3.0,4 x 3.5 internal bays,300W PSU

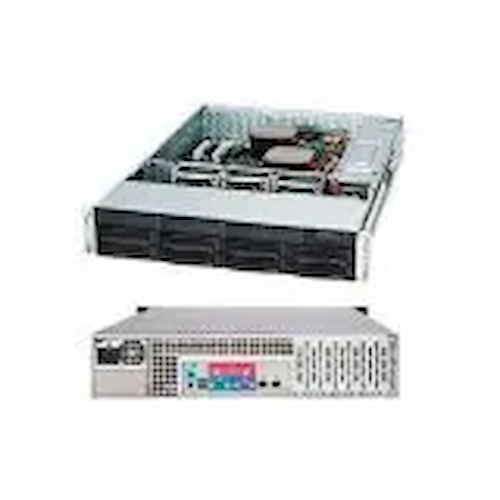

Product SKUs CSE-825TQC-600LPB SuperChassis 825TQC-600LPB Form Factor 2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards Processor Support Dual and Single Intel® and AMD processors Dimensions Height3.5" (89 mm)Width17.2" (437 mm)Depth25.5" (647 mm)Gross Weight52 lbs (23.59 kg)Packaging (W x H x L)26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)Available ColorBlack Expansion Slots 7 low-profile expansion slot(s) Drive Bays 8 x 3.5" hot-swap SAS3/SATA drive bay2 x 3.5" fixed drive bay Backplane 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD Peripheral Drives Optional 1 x slim DVD-ROM drive bayOptional

Product SKUs CSE-743AC-668B SuperChassis 743AC-668B Form Factor 4U chassis - supports for maximum motherboard sizes: 12" x 13" E-ATX and ATX Processor Support Dual and Single Intel® and AMD processors Dimensions Height17.8" (452 mm)Width7" (178 mm)Depth25.5" (647 mm)Net Weight52 lbs (23.59 kg)Gross Weight55 lbs (24.95 kg)Packaging (W x H x L)24.6" (625 mm) x 14" (356 mm) x 31.3" (795 mm)Available ColorBlack Expansion Slots 7 full-height & full-length expansion slot(s) Drive Bays 8 x 3.5" hot-swap SAS/SATA drive bay with SGPIO Backplane 8-port 4U/Tower 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane for SC743/SC745 chassis Peripheral Drives 3 x standard 5.25" drive bay Front Panel ButtonsPower

Product SKUs CSE-743TQ-865B-SQ SuperChassis 743TQ-865B-SQ Form Factor 4U chassis - supports for maximum motherboard sizes: 12" x 13" E-ATX and ATX Processor Support Dual and Single Intel® and AMD processors Dimensions Height17.8" (452 mm)Width7" (178 mm)Depth25.5" (647 mm)Net Weight53 lbs (24.04 kg)Gross Weight56 lbs (25.4 kg)Packaging (W x H x L)24.6" (625 mm) x 14" (356 mm) x 31.3" (795 mm)Available ColorBlack Expansion Slots 7 full-height & full-length expansion slot(s) Drive Bays 8 x 3.5" hot-swap SAS/SATA drive bay with SGPIO Backplane 743 SAS BACKPLANE W/AMI MG9072 Peripheral Drives 3 x standard 5.25" drive bay90 degree rotatable drive cage Front Panel ButtonsPower On/Off buttonSystem

Product SKUs CSE-825TQ-563LPB SuperChassis 825TQ-563LPB Form Factor 2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards Processor Support Dual and Single Intel® and AMD processors Dimensions Height3.5" (89 mm)Width17.2" (437 mm)Depth25.5" (647 mm)Gross Weight52 lbs (23.59 kg)Packaging (W x H x L)26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)Available ColorBlack Expansion Slots 7 low-profile expansion slot(s) Drive Bays 8 x 3.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards2 x 3.5" fixed drive bay Backplane 8-port 2U TQ (W/ AMI 9072) backplane, support up to 8x 3.5-inch SAS/SATA HDD Peripheral Drives

Product SKUs CSE-813MFTQC-R407CB SuperChassis 813MFTQC-R407CB Form Factor 1U chassis, support motherboard size ATX 12" x 10" and Micro ATX 9.6" x 9.6". Processor Support Dual and Single Intel® and AMD processors Dimensions Height1.7" (43 mm)Width17.2" (437 mm)Depth19.85" (503 mm)Gross Weight33.5 lbs (15.2 kg)Packaging (W x H x L)23.4" (594 mm) x 8.5" (216 mm) x 29.7" (754 mm)Available ColorBlack Expansion Slots 1 full height expansion slot(s) Drive Bays 4 x 3.5" hot-swap SAS/SATA Backplane 1U 4-Port 12Gbps Backplane Support 4x3.5 Peripheral Drives Optional 1 x Slim DVD-ROM DriveOptional 1 x USB + COM port tray Front Panel ButtonsPower On/Off buttonSystem Reset ButtonLEDs2 Network Activity

Product SKUs SYS-6018R-MT SuperServer 6018R-MT (Black) Motherboard Super X10DRL-i Processor/Cache CPUIntel® Xeon® processor E5-2600 v4†/ v3 family (up to 135W TDP) *Dual Socket R3 (LGA 2011)Cores / CacheUp to 22 Cores† / Up to 55MB† CacheSystem BusQPI up to 9.6 GT/sNote† BIOS version 2.0 or above is requiredNote* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. System Memory Memory Capacity8x 288-pin DDR4 DIMM slotsUp to 1TB† ECC 3DS LRDIMM, 512GB ECC RDIMMMemory Type2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bitDIMM SizesRDIMM: 64GB, 32GB, 16GB, 8GB, 4GBLRDIMM: 64GB, 32GB3DS LRDIMM:

Product SKUs SYS-5019S-M SuperServer 5019S-M (Black) Motherboard Super X11SSH-F Processor/Cache CPUSingle Socket H4 (LGA 1151) supports:Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen Core™ i3CPU TDP up to 80WNoteBIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors System Memory Memory Capacity4x 288-pin DDR4 DIMM slotsUp to 64GB DDR4 ECC UDIMMMemory Type2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMsDIMM Sizes16GB, 8GB, 4GBMemory Voltage1.2 VError DetectionCorrects single-bit errorsDetects double-bit errors (using ECC memory) On-Board Devices ChipsetIntel® C236

Product SKUs CSE-825TQC-R740LPB SuperChassis 825TQC-R740LPB Form Factor 2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards Processor Support Dual and Single Intel® and AMD processors Dimensions Height3.5" (89 mm)Width17.2" (437 mm)Depth25.5" (647 mm)Gross Weight52 lbs (23.59 kg)Packaging (W x H x L)26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)Available ColorBlack Expansion Slots 7 low-profile expansion slot(s) Drive Bays 8 x 3.5" hot-swap SAS3/SATA drive bay2 x 3.5" fixed drive bay Backplane 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD Peripheral Drives Optional 1 x slim DVD-ROM drive

Product SKUs CSE-825TQC-R1K03LPB SuperChassis 825TQC-R1K03LPB Form Factor 2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards Processor Support Dual and Single Intel® and AMD processors Dimensions Height3.5" (89 mm)Width17.2" (437 mm)Depth25.5" (647 mm)Gross Weight52 lbs (23.59 kg)Packaging (W x H x L)26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)Available ColorBlack Expansion Slots 7 low-profile expansion slot(s) Drive Bays 8 x 3.5" hot-swap SAS3/SATA drive bay2 x 3.5" fixed drive bay Backplane 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD Peripheral Drives Optional 1 x slim DVD-ROM drive

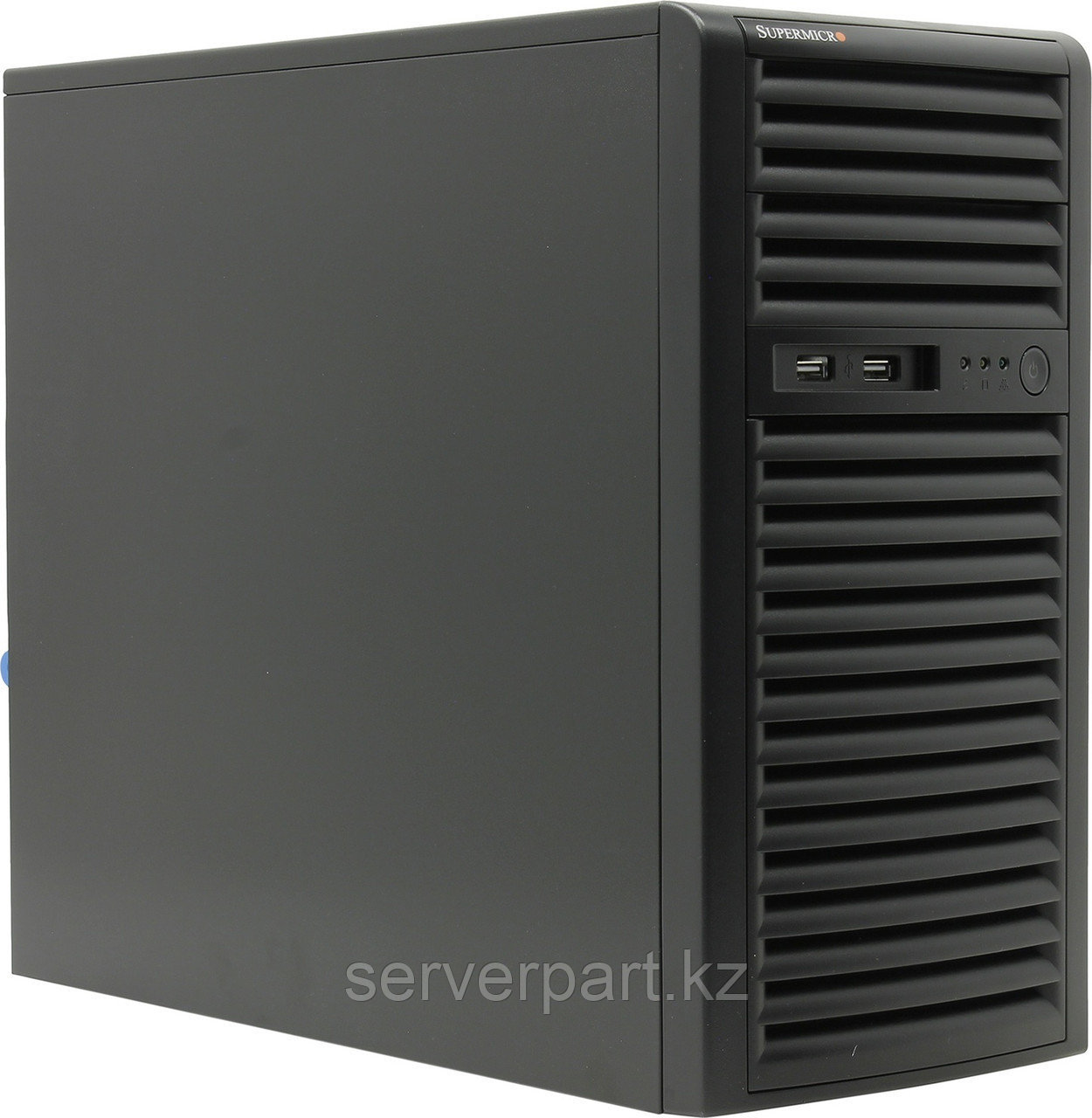

Сервер 1С, сервер предприятия, филиала до 100 пользователей, сервер СУБД SQL, сервер виртуализации, терминальный серверСервер в сборе на базе Supermicro SuperServer SYS-5039C-Iсервер 1С, сервер предприятия, филиала до 40 пользователей, контроллер домена, интернет шлюз до 100 пользователейSuperServer SYS-5039C-I (X11SCL-F/SC731i-403 Black)• Mid-Tower (362 x 184 x 425 mm)• Intel CPU Server 4-Core Xeon E-2124 (3.3 GHz, 8M Cache, LGA1151)• Intel C242 chipset• 16GB DDR4 2666MHz ECC Unbuf. /

Product SKUs SYS-5018R-WR SuperServer 5018R-WR (Black) Motherboard Super X10SRW-F Processor CPUIntel® Xeon® processor E5-2600 v4†/ v3, E5-1600 v4†/ v3 family (up to 145W TDP **)Single Socket R3 (LGA 2011)Core / CacheUp to 22 Cores† / Up to 55MB† CacheNote† BIOS version 2.0 or above is requiredNote** Motherboard supports this maximum TDP. Please verify your system can thermally support System Memory Memory Capacity8x 288-pin DDR4 DIMM slotsUp to 1TB ECC 3DS LRDIMMUp to 512GB ECC LRDIMMUp to 256GB ECC RDIMMMemory Type2400†/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMsDIMM Sizes3DS LRDIMM: 128GBLRDIMM: 64GB, 32GBRDIMM: 32GB, 16GB,

Product SKUs SYS-5019C-MR SuperServer 5019C-MR (Black) Motherboard Super X11SCM-F Processor CPUSingle Socket H4 (LGA 1151),CPU TDP support up to 95WSupport Intel® Xeon® processor E-2100 / E-2200 series, 8th/9th Gen. Intel® Core™ i3 / Pentium® / Celeron® ProcessorsCores8 cores, 16 threadsNoteBIOS 1.0b or above is required to support Intel® Xeon® processor E-2200 series System Memory Memory Capacity4 DIMM slotsUp to 128GB Unbuffered ECC UDIMMUp to DDR4-2666MHzMemory Type2666/2400/2133MHz ECC DDR4 SDRAMDIMM Sizes32GB, 16GB, 8GB, 4GB On-Board Devices ChipsetIntel® C246 chipsetSATASATA3 (6Gbps) via Intel C246 controllerRAID 0, 1, 5, 10 supportIPMIASPEED AST2500Network ControllersDual

Product SKUs SYS-6019P-MT SuperServer 6019P-MT (Black) Motherboard Super X11DPL-i Processor/Cache CPUDual Socket P (LGA 3647)2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,Dual UPI up to 10.4GT/sSupport CPU TDP 70-140WCoresUp to 28 CoresNote‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) System Memory Memory Capacity8 DIMM slotsUp to 2TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMMMemory Type2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMMNote† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro On-Board Devices ChipsetIntel® C621 chipsetSATASATA3

Product SKUs SYS-5019S-MR SuperServer 5019S-MR (Black) Motherboard Super X11SSH-F Processor/Cache CPUSingle Socket H4 (LGA 1151) supports:Intel® Xeon® processor E3-1200 v6/v5,Intel® 7th/6th Gen Core™ i3CPU TDP up to 80WNoteBIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors System Memory Memory Capacity4x 288-pin DDR4 DIMM slotsUp to 64GB DDR4 ECC UDIMMMemory Type2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMsDIMM Sizes16GB, 8GB, 4GBMemory Voltage1.2 VError DetectionCorrects single-bit errorsDetects double-bit errors (using ECC memory) On-Board Devices ChipsetIntel® C236

Product SKUs SYS-1028R-WTR SuperServer 1028R-WTR (Black) Motherboard Super X10DRW-i Processor/Cache CPUIntel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *Dual Socket R3 (LGA 2011)Cores / CacheUp to 22 Cores† / Up to 55MB† CacheSystem BusQPI up to 9.6 GT/sNote† BIOS version 2.0 or above is requiredNote* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. System Memory Memory Capacity16x 288-pin DDR4 DIMM slotsUp to 2TB† ECC 3DS LRDIMM/RDIMMMemory Type2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bitDIMM SizesRDIMM: 64GB, 32GB, 16GB, 8GB, 4GBLRDIMM: 64GB, 32GB3DS LRDIMM: 128GBMemory

Product SKUs CSE-826BE1C-R920LPB SuperChassis 826BE1C-R920LPB Form Factor 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68".Support up to ATX 12"x13" MB with rear 2.5" HDD option installed Processor Support Dual and Single Intel® and AMD processors Dimensions Height3.5" (89 mm)Width17.2" (437 mm)Depth25.5" (647 mm)Gross Weight55 lbs (24.95 kg)Packaging (W x H x L)26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)Available ColorBlack Expansion Slots 7 low-profile expansion slot(s) Drive Bays 12 x 3.5" hot-swap SAS/SATA drive bay with SES3Optional 2 x 2.5" hot-swap drive bay Backplane 12-port 2U SAS3 12Gbps single-expander backplane, support up to

Product SKUs SYS-6028R-TR SuperServer 6028R-TR (Black) Motherboard Super X10DRi Processor/Cache CPUIntel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *Dual Socket R3 (LGA 2011)Cores / CacheUp to 22 Cores† / Up to 55MB† CacheSystem BusQPI up to 9.6 GT/sNote† BIOS version 2.0 or above is requiredNote* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. System Memory Memory Capacity16x 288-pin DDR4 DIMM slotsUp to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMMMemory Type2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bitDIMM SizesRDIMM: 64GB, 32GB, 16GB, 8GB, 4GBLRDIMM: 64GB, 32GB3DS LRDIMM:

Product SKUs SYS-1029P-WTR SuperServer 1029P-WTR (Black) Motherboard Super X11DDW-L Processor/Cache CPUDual Socket P (LGA 3647)2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,Dual UPI up to 10.4GT/sSupport CPU TDP 70-165W*CoresUp to 28 CoresNote* Certain high frequency optimized CPUs within 165W TDP are not supported, such as Intel Gold 6144, 6146, 6244 and 6246.Note‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R). Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information. System Memory
