SuperServer 5018D-MTF (Black) • 1U Rackmount (43 x 437 x 503mm) • Single Quad-Core Intel® Xeon™ Haswell 4C E3-1230V3 3.3G 8M 5GT/s DMI • Intel® C224 PCH Chipset • 4Gb DDR3-1600 Un-Buffer ECC/Up to 32Gb DDR3 1600/1333 ECC Un-buffer DIMM • 2x SATA (3Gbps) w/ RAID 0, 1, 4x SATA (6Gbps) w/ RAID 0, 1, 5, 10 • Dual Gigabit Ethernet LAN ports (1x Intel® i217LM & 1x Intel® i210AT) • 1x PCI-E 3.0 x8 (in x16) Full-height slot • 2 x SEAGATE 1.0TB SATA 6.0Gb/s 7200 RPM 128MB 3.5” ST1000NM0033 (Серверный 1.2МЛН) • 4 x 3.5" Hot-swap SATA2 HDDs w/ RAID • Aspeed AST2400 BMC • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • DVD-RW

SuperServer 5018D-MTRF (Black) • 1U Rackmount (43 x 437 x 503mm) • Single Quad-Core Intel® Xeon™ Haswell 4C E3-1270V3 3.3G 8M 5GT/s DMI • Intel® C224 PCH Chipset • 16Gb DDR3-1600 Un-Buffer ECC/Up to 32Gb DDR3 1600/1333 ECC Un-buffer DIMM • 2x SATA (3Gbps) w/ RAID 0, 1, 4x SATA (6Gbps) w/ RAID 0, 1, 5, 10 • Dual Gigabit Ethernet LAN ports (1x Intel® i217LM & 1x Intel® i210AT) • 1x PCI-E 3.0 x8 (in x16) Full-height slot • 4 x SEAGATE 1.0TB SATA 6.0Gb/s 7200 RPM 128MB 3.5” ST1000NM0033 (Серверный 1.2МЛН) • 4 x 3.5" Hot-swap SATA2 HDDs w/ RAID • Aspeed AST2400 BMC • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • DVD-RW

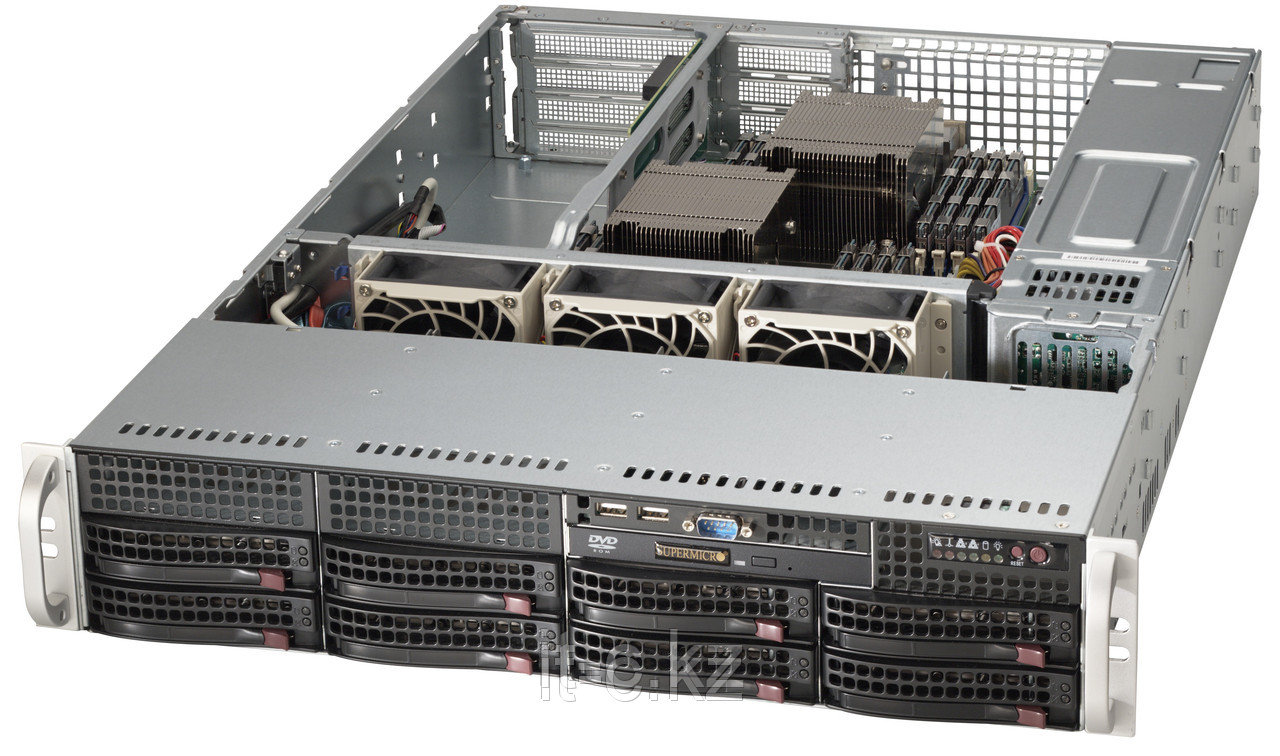

SuperServer 6027R-72RF ∙ 2U Rackmount(89mm x 437mm x 648mm) ∙ 2 x Ivy Bridge 6C E5-2620V2 2.1G 15M 7.2GT/s QPI ∙ Intel® C602 Chipset ∙ 32 Gb DDRIII 1600Mhz Supports Up to 1TB DDR3 1866/1600/1333/1066MHz ECC Registered DIMM; 16x DIMM sockets ∙ Intel® i350 Dual port Gigabit Ethernet ∙ 1 PCI-E 3.0 x16 and 6 PCI-E 3.0 x8 ∙ IPMI 2.0 Remote access management controller virtual media over LAN and KVM-over-LAN support ∙ 8x SATA2 and 2x SATA3 ports ∙ SATA 2.0 3Gb/s with RAID 0, 1, 5, 10 ∙ SATA 3.0 6Gb/s with RAID 0, 1 ∙ SATA 2.0 3Gb/s with RAID 0, 1, 10 ∙ On-board LSI 2208 8-ports RAID Controller 1Gb Cache, RAID 0,1,5,10,50,60 (BBU Optional) ∙ 8 x 3.5"

SuperServer 6027R-TRF ∙ 2U Rackmount(89mm x 437mm x 648mm) ∙ 2 x Sandy Bridge 4C E5-2609v2 2.5G 10M 6.4GT/s QPI ∙ Intel® C602 Chipset ∙ 32 Gb DDRIII 1333Mhz Supports Up to 1TB DDR3 1866/1600/1333/1066MHz ECC Registered DIMM; 16x DIMM sockets ∙ Intel® i350 Dual port Gigabit Ethernet ∙ 3x PCI-E 3.0 x16, 3x PCI-E 3.0 x8 ∙ IPMI 2.0 Remote access management controller virtual media over LAN and KVM-over-LAN support ∙ Via Cable for SATA controller SATA 2.0 3Gbps with RAID 0, 1, 5, 10 SATA 3.0 6Gbps with RAID 0, 1, 5, 10 ∙ 8 x 3.5" Hot-swap SAS/SATA Drives ∙ 4 x SEAGATE 1.0TB SATA 6.0Gb/s 7200 RPM 128MB 3.5” ST1000NM0033 (Серверный 1.2МЛН) ∙

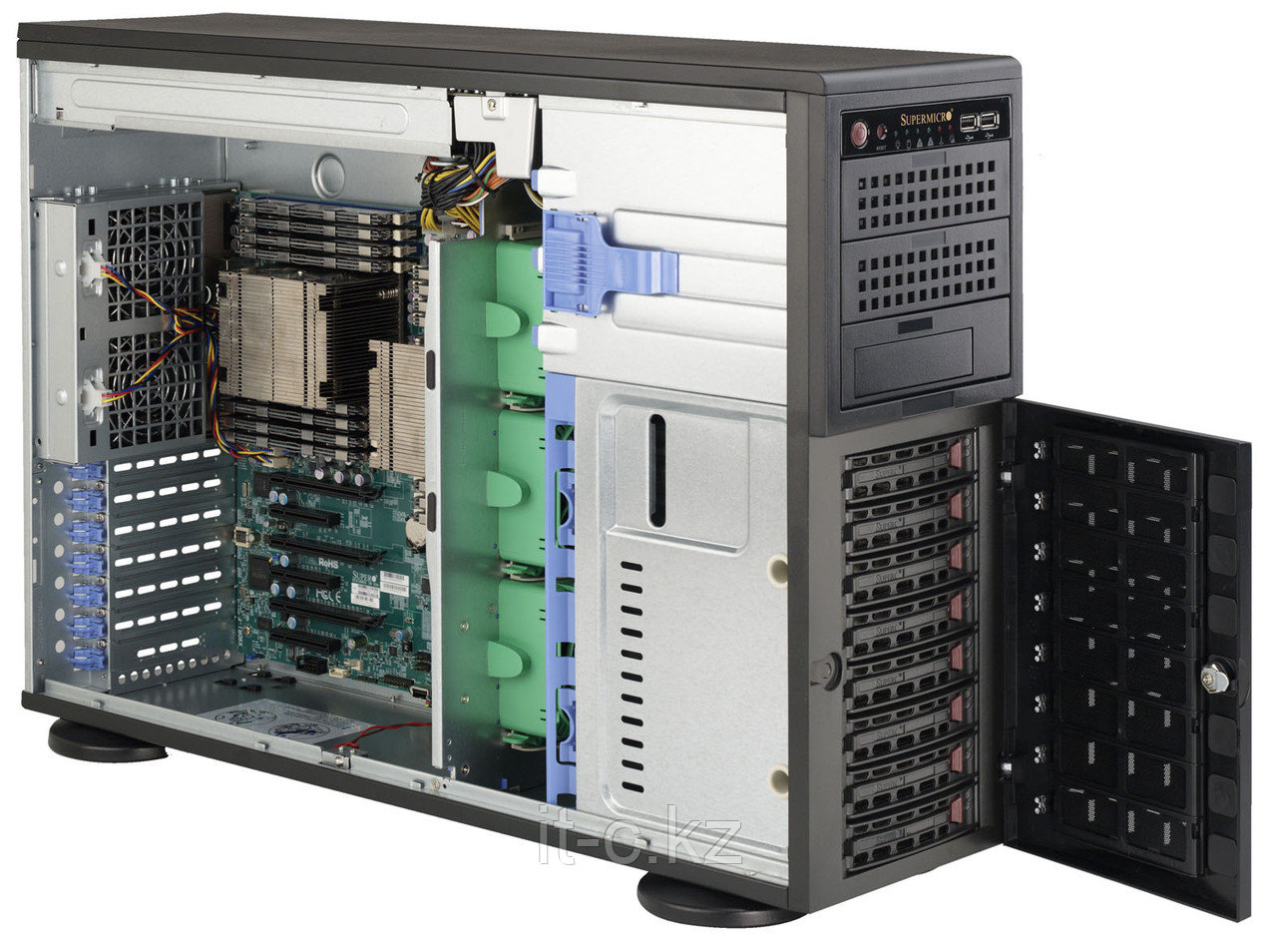

SuperServer SYS-7047R-TRF ∙ 4U Tower(178mm x 437mm x 648mm) ∙ 2 x Sandy Bridge 4C E5-2609v2 2.5G 10M 6.4GT/s QPI ∙ Intel® C602 Chipset ∙ 32 Gb DDRIII 1333Mhz Supports Up to 512GB DDR3 1600/1333/1066MHz ECC Registered DIMM; 16x DIMM sockets ∙ Intel® i350 Dual port Gigabit Ethernet ∙ 1 PCI-E 3.0 x16 and 6 PCI-E 3.0 x8 ∙ IPMI 2.0 Remote access management controller virtual media over LAN and KVM-over-LAN support ∙ 8x SATA2 and 2x SATA3 ports with RAID 0, 1, 5, 10 ∙ 8x Hot-swap 3.5" HDD Bays; ∙ 4 x SEAGATE 2000GB SATA 6.0Gb/s 7200 RPM 64MB 3.5” ST2000NM0033 (Enterprise - Серверный 1.2МЛН) ∙ G200 (Nuvoton WPCM450 BMC with graphic controller)

SuperServer SYS-5038A-iL ∙ Mid-Tower(193mm x 424mm x 525mm) ∙ 1 x Haswell 4C E3-1225V3 3.2G 8M 5GT/s DMI ∙ Intel® C226PCH Chipset ∙ 8 Gb DDRIII 1600Mhz Supports Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM) ∙ Dual Gigabit Ethernet LAN ports (1x Intel® i217LM & 1x Intel® i210AT) ∙ 2x PCI-E 3.0 x16 (x16/NA or x8/x8), 3x PCI-E 2.0 x1, 2x PCI 32-bit slots ∙ 8x SATA3 (6Gbps) w/ RAID 0, 1, 5, 10 ∙ 4x 3.5" tool-less HDD trays + 2x 5.25" drive bays ∙ 2 x SEAGATE 1000GB SATA 6.0Gb/s 7200 RPM 128MB 3.5” ST1000NM0033 (Серверный 1.2МЛН) ∙ Integrated Video Intel HD P4600 1,6Gb Dynamic Memory ∙ I/O Ports: 1 DVI, 1 VGA, 1 HDMI, 1 display port,
