ИБП Delta

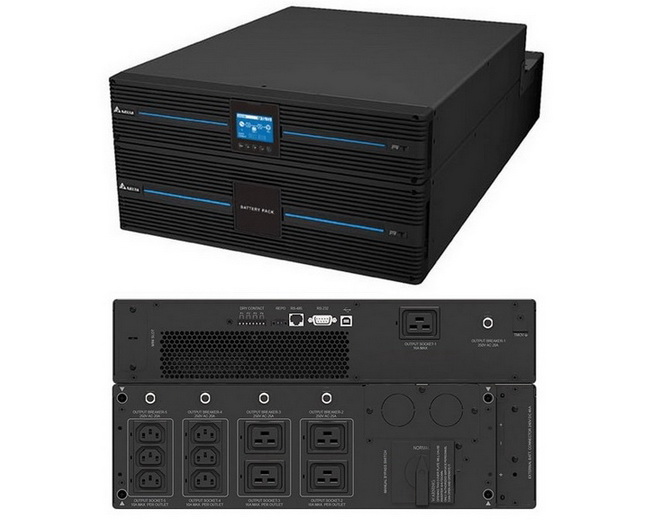

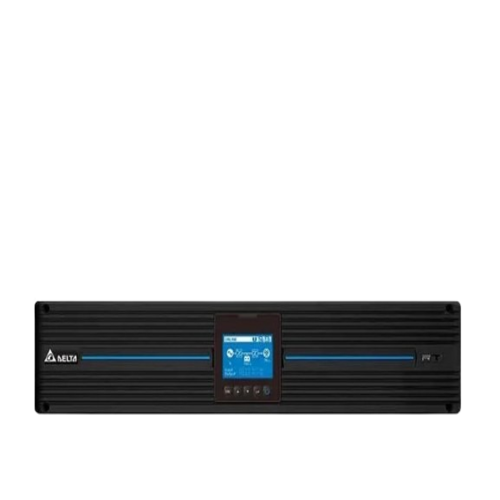

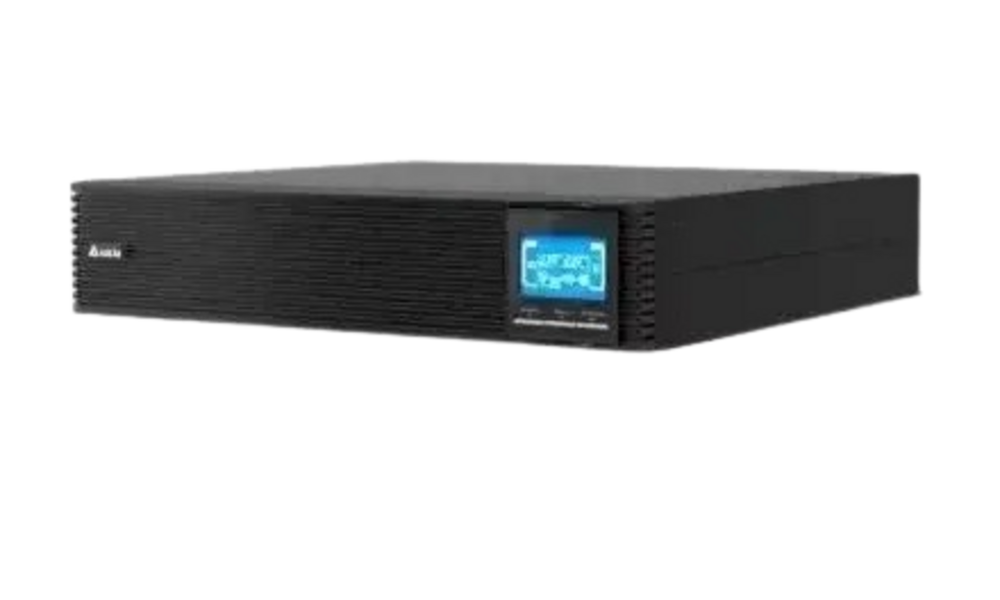

Rated voltage 200/ 208/ 220/ 230/ 240 AC, 1P2W+PE Voltage range 175-280 VAC (100% load), 100-175 VAC (with reduction to 50-100% load) Frequency range 40-70 Hz Total Harmonic Distortion Coefficient (THDi) < 3% Power factor > 99% (100% load) Connection Input terminal Rated voltage 200/ 208/ 220/ 230/ 240 AC, 1P2W+PE Voltage regulation ±1% Frequency 50/60 ± 0.05 Hz Total harmonic distortion coefficient (THDv) < 2% (linear load), < 4% (nonlinear load) Power factor 1 Connection Standard operating time model ⦁ RT-5K/6K C13 x6, C19 x2, terminal x1, programmable socket C19 x1 ⦁ RT-8K/10K C13 x6, C19 x4, terminal x1, programmable socket C19 x1 A model with an extended working time Terminal x1,

Rated voltage 200/ 208/ 220/ 230/ 240 AC, 1P2W+PE Voltage range 175-280 VAC (100% load), 100-175 VAC (with reduction to 50-100% load) Frequency range 40-70 Hz Total Harmonic Distortion Coefficient (THDi) < 3% Power factor > 99% (100% load) Connection Input terminal Rated voltage 200/ 208/ 220/ 230/ 240 AC, 1P2W+PE Voltage regulation ±1% Frequency 50/60 ± 0.05 Hz Total harmonic distortion coefficient (THDv) < 2% (linear load), < 4% (nonlinear load) Power factor 1 Connection Standard operating time model ⦁ RT-5K/6K C13 x6, C19 x2, terminal x1, programmable socket C19 x1 ⦁ RT-8K/10K C13 x6, C19 x4, terminal x1, programmable socket C19 x1 A model with an extended working time Terminal x1,

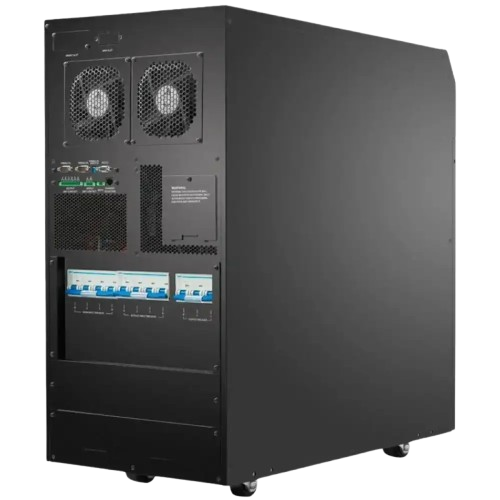

Rated voltage 380/400/415 V AC. 3P4W+PE Voltage range 305-485 VAC (100% load), 138-305 VAC (with a reduction to 40-100% load) Frequency range 40-70 Hz Total Harmonic Distortion Coefficient (THDi) < 3% Power factor > 99% (100% load) Connection Input terminal x 1, Bypass input terminal x 1 Rated voltage 380/400/415 VAC. 3P4W+PE or 220/230/240 VAC, 1P2W+PE Voltage regulation ±1% Frequency 50/60 ± 0.05 Hz Total harmonic distortion coefficient (THDv) < 2% (linear load), < 4% (nonlinear load) Power factor1 Connecting terminal x1 Overload capacity(1)106-125%: 5 min, 126-150%: 1 min, > 150%: 500 ms Current peak ratio 3:1 Battery Type VRLA/ Lithium-ion Rated voltage: ● RT-15K-3P/20K-3P±144 V

Network connection 10/100 M RJ45 Connector Input power 12 V DC Power consumption < 2 W Operating temperature 0–60 °C Working humidity 0–95% Sizes 87 x 70 x 30 mm Net weight 75 g Standard EN 55032:2015+A11:2020, EN 55035:2017+A11:2020 Safety IEC 62443-4-1, IEC 62443-4-2 Product Certification FCC Class B, CE, UL Stability RoHS, REACH
